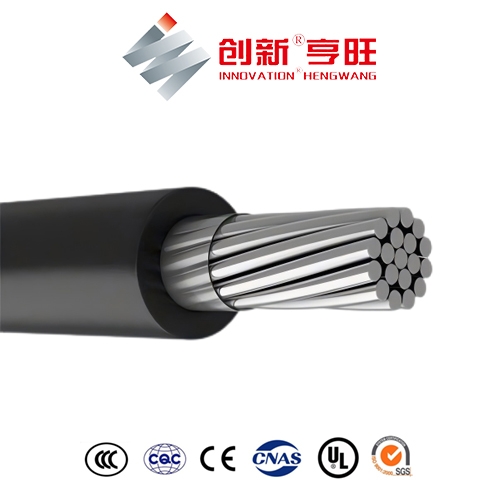

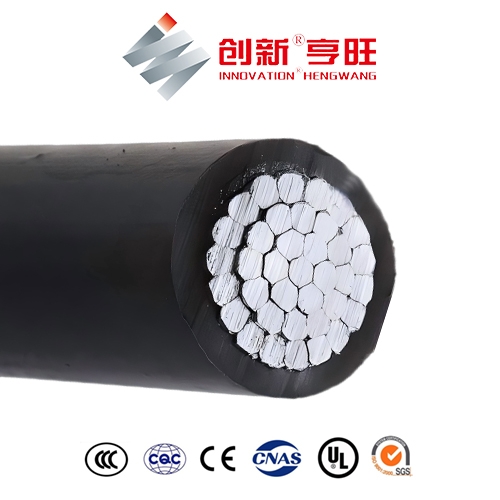

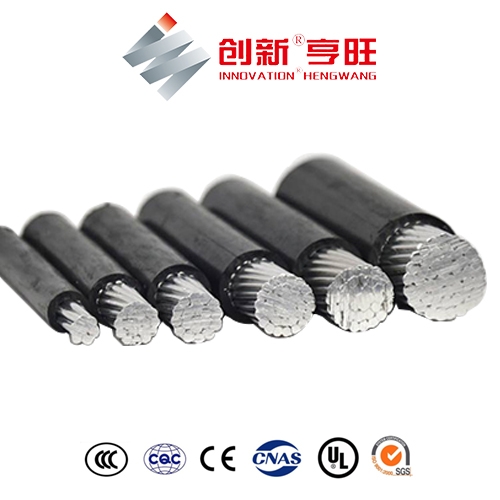

Covered Line Wire

600V Aerical Line with Aluminum Conductor

Covered AL Line Wire Weatherproof Application

The 0.6/1kV Covered Line Wire is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (pole to pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃.

Covered AL Line Wire Weatherproof Standards

ASTM B-230-Aluminum 1350-H19 wire for electrical purposes
ASTM B-398-Aluminum alloy 6201-T81 wire for electrical purposes
ASTM B-399-Concentric-lay-stranded 6201-T81 aluminum alloy conductors
ASTM B-231-Concentric-lay-stranded aluminum conductors, coated-steel reinforced (ACSR).
ASTM B-1248-Polyethylene plastics molding and extrusion materials.
ASTM C-8.35-Specifications for weather-resistant polyethylene-covered wire and cable.
ICEA S-61-402-Standards publication thermoplastic insulated wire and cable for the transmission and distribution of electrical energy
ICEA S-70-547-Standards for weather-resistant polyethylene covered conductors

Covered AL Line Wire Weatherproof Construction

Conductors: AAC/AAAC/ACSR.
Insulation: PE/XLPE/PVC, UV-resistant.

Covered AL Line Wire Weatherproof Characteristics

Voltage rating: 600V
Test voltage: 4kV, 5min no breakdown
Operating temperature:
PVC: -15°C to +75°C
PE: -40°C to +75°C
XLPE: -40°C to +90°C
Minimum laying/installation temperature:
PVC: 0°C
PE: -20°C
XLPE: -20°C
Minimum bending radius: 12 x OD (overall diameter)
