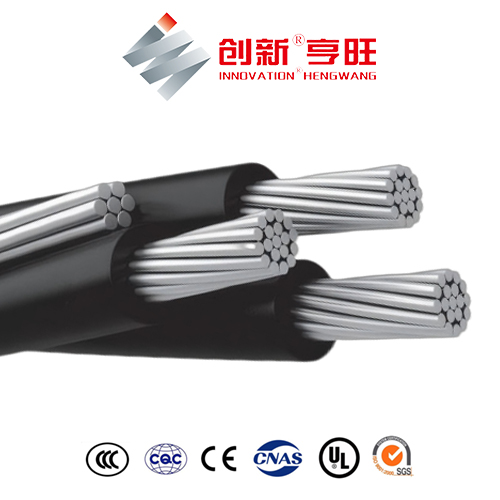

0.6/1kV Service Drop Cable

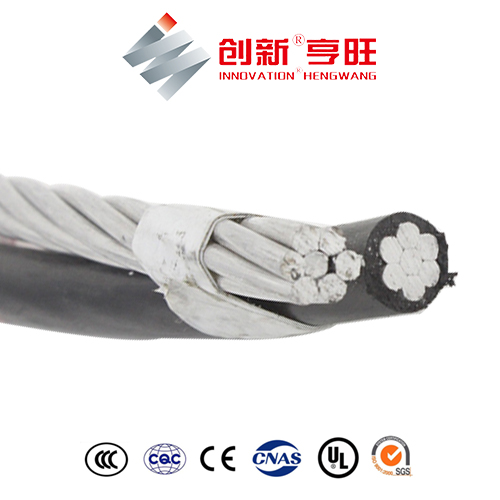

0.6/1kV Service Drop Cable - Image 2

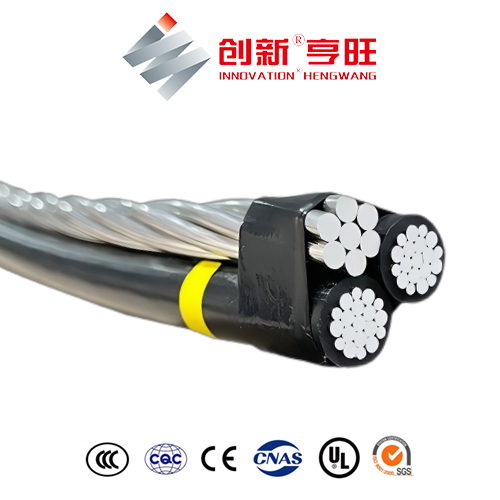

0.6/1kV Service Drop Cable - Image 3

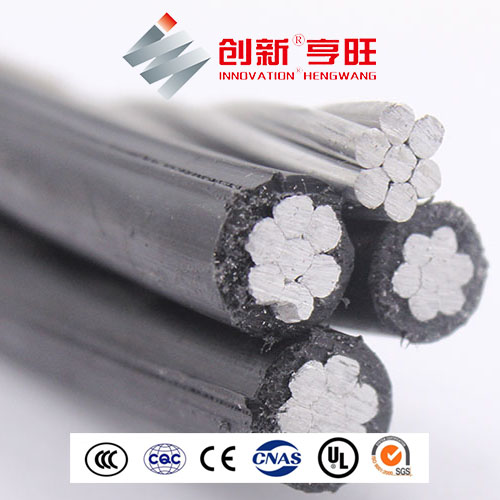

0.6/1kV Service Drop Cable - Image 4
0.6/1kV Service Drop Cable - Image 5

0.6/1kV Service Drop Cable

Category: Tags: , , , , , , ,

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Quality Certification (1)
Quality Certification (2)
Quality Certification (3)
Quality Certification (4)
Quality Certification (5)
Quality Certification (6)
Quality Certification (7)
Quality Certification (8)
Quality Certification (9)
Quality Certification (10)
Quality Certification (11)
Quality Certification (12)
Data sheet
Send Email

Share:

Description
Certificate
Factory Tour
Advantage
FAQs
Form

Product Description

0.6/1kV Service Drop Cable

Low voltage American Standard Overhead Service Drop Cable

Overhead Service Drop Cable Application

Primarily used as overhead cable or air cable for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors. This duplexed triplexed quadruplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles.  The cable should be limited to 600V phase to phase and not exceed 90˚C.
Triplex wire is commonly used for overhead, single phase service and contains three individual wires twisted around each other. The two insulated conductors are called the “hot” legs of the service while the bare (uninsulated) wire is the neutral wire of the service. As mentioned above, this triplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles.

Service Drop Cable Standards

ASTM B-230-Aluminum 1350-H19 wire for electrical purposes
ASTM B-398-Aluminum alloy 6201-T81 wire for electrical purposes
ASTM B-399-Concentric-lay-stranded 6201-T81 aluminum alloy conductors
ASTM B-231-Concentric-lay-stranded aluminum conductors, coated-steel reinforced (ACSR).
ICEA S-76-474-Standards for neutral-supported power cable assemblies with weather-resistant extruded insulation rated 600 volts.

Service Drop Cable Construction

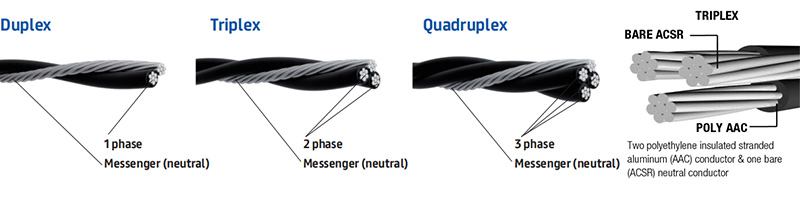

service drop wire cable
Phase conductors: AAC/AAAC/ACSR.

Insulation: PE/XLPE/PVC, UV-resistant.

Bare neutral-supported: AAC/AAAC/ACSR

Duplex/Triplex/Quadruplex Service Drop Cable Characteristics
  • Voltage rating: 600V
  • Test voltage: 4kV, 5min no breakdown
  • Operating temperature:
    PVC: -15°C to +75°C
    PE: -40°C to +75°C
    XLPE: -40°C to +90°C
  • Minimum laying/installation temperature:
    PVC: 0°C
    PE: -20°C
    XLPE: -20°C
  • Minimum bending radius:12 x OD (overall diameter)
  • Core identification: numbers or ribs or colors stripe.

0.6/1kV Service Drop Cable Specifications

Service Drop Cable (Duplex) ANSI/ICEA S-76-474
Code word Phase Conductors Bare Neutral Nominal Weight
kg/km		 Max. DC Phase Conductor     resistance at 20℃
Ω/km		 Ampacity
A
Size & Number of Wires Nominal Diameter
mm		 Size & Number of Wires
Bare Neutral: AAC
Pekingese 6-1 6.4 6-7 94 2.2126 78
Collie 6-7 6.9 6-7 97 2.2126 78
Cocker 6-7 7.7 6-7 106 2.2126 78
Dachshund 4-1 7.5 4-7 141 1.3896 103
Spaniel 4-7 8.2 4-7 146 1.3896 103
Cairn 4-7 8.9 4-7 156 1.3896 103
Doberman 2-7 9.7 2-7 223 0.8749 136
Airedale 1-19 11.5 1-7 290 0.6934 158
Basset 1/0-7 12.4 1/0-7 359 0.5498 182
Malemure 1/0-19 12.5 1/0-7 359 0.5498 182
Bare Neutral: AAAC
Chihuahua 6-1 6.4 6-7 94 2.5703 78
Vizsla 6-7 6.9 6-7 97 2.5703 78
Harner 4-1 7.5 4-7 143 1.3896 103
Whippet 4-7 8.2 4-7 146 1.3896 103
Schnauzer 2-7 9.7 2-7 223 0.8749 136
Afghan 1/0-7 12.4 1/0-7 360 0.5498 182
Heeler 1/0-19 12.5 1/0-7 360 0.5498 182
Bare Neutral: ACSR
Setter 6-1 6.4 6-6/1 94 2.2126 78
Shepherd 6-7 6.9 6-6/1 97 2.2126 78
Retriever 6-7 7.7 6-6/1 106 2.2126 78
Eskimo 4-1 7.5 4-6/1 141 1.3896 103
Terrier 4-7 8.2 4-6/1 146 1.3896 103
Yorkshire 4-7 8.9 4-6/1 156 1.3896 103
Chow 2-7 9.7 2-6/1 223 0.8749 136
Labrador 1-19 11.5 1-6/1 290 0.6934 158
Bloodhound 1/0-7 12.4 1/0-6/1 359 0.5498 182
Bull 1/0-19 12.5 1/0-6/1 359 0.5498 182
Service Drop Cable (Triplex) ANSI/ICEA S-76-474
Code word Phase Conductors Bare Neutral Nominal Weight
kg/km		 Max. DC Phase Conductor     resistance at 20℃
Ω/km		 Ampacity
A
Size & Number of Wires Nominal Diameter
mm		 Size & Number of Wires
Bare Neutral: AAC
Halotis 6-1 6.4 6-7 152 2.2126 78
Pike 6-7 6.2 6-7 143 2.2126 78
Patella 6-7 7.0 6-7 159 2.2126 78
Albus 6-7 7.7 6-7 198 2.2126 78
Fusus 4-1 7.5 4-7 229 1.3896 103
Oyster 4-7 8.2 4-7 237 1.3896 103
Argo 4-7 8.9 4-7 258 1.3896 103
Clam 2-7 9.7 2-7 359 0.8749 136
Thia 2-7 10.5 2-7 383 0.8749 136
Mussel 2-7 9.7 2-7 359 0.8749 136
Pyrula 1-7 11.4 1-7 467 0.6934 158
Hyas 1-19 11.5 1-7 469 0.6934 158
Murex 1/0-7 12.4 1/0-7 513 0.5498 182
Purpura 1/0-19 12.5 1/0-7 515 0.5498 182
Nasa 2/0-7 13.6 2/0-7 710 0.4361 210
Trophon 2/0-19 13.7 2/0-7 713 0.4361 210
Quahog 3/0-7 15.9 3/0-7 926 0.3458 242
Ione 3/0-19 16.0 3/0-7 929 0.3458 242
Melita 3/0-19 15 3/0-19 881 0.3458 242
Coquina 4/0-7 16.3 4/0-7 1089 0.2742 279
Tusk 4/0-7 17.3 4/0-7 1141 0.2742 279
Apus 4/0-19 17.5 4/0-7 1144 0.2742 279
Portunus 4/0-19 16.5 4/0-19 1091 0.2742 279
Chiton 266.8-19 18.9 266.8-19 1409 0.2176 310
Nannynose 336.4-19 21 336.4-19 1749 0.1725 330
Bare Neutral: AAAC
Homarus 6-1 6.4 6-7 159 2.2126 78
Minex 6-1 13.3 6-7 159 2.2126 78
Cabera 6-7 6.9 6-7 165 2.2126 78
Hippa 6-7 6.9 6-7 165 2.2126 78
Artemia 4-1 7.5 6-7 214 1.3896 103
Maira 4-7 8.2 6-7 247 1.3896 103
Crab 4-7 8.2 6-7 222 1.3896 103
Luidia 4-1 7.5 6-7 214 1.3896 103
Prawn 4-1 7.5 4-7 240 1.3896 103
Metalia 4-7 8.2 4-7 247 1.3896 103
Barnacles 4-7 8.2 4-7 247 1.3896 103
Solaster 2-7 9.7 4-7 333 0.8749 136
Pagarus 2-7 10.5 4-7 357 0.8749 136
Shrimp 2-7 9.7 2-7 374 0.8749 136
Lobster 2-7 10.5 2-7 397 0.8749 136
Encope 1-19 11.5 2-7 461 0.6934 158
Sanderab 1/0-7 12.4 2-7 537 0.5498 182
Echinus 1/0-19 12.5 2-7 539 0.5498 182
Gammarus 1/0-7 12.4 1/0-7 601 0.5498 182
Leda 1/0-19 12.5 1/0-7 603 0.5498 182
Crayfish 2/0-7 13.6 2-7 631 0.4361 210
Sipho 2/0-19 13.7 2-7 634 0.4361 210
Dungenese 2/0-7 13.6 2/0-7 740 0.4361 210
Cyclops 2/0-19 13.7 2/0-7 743 0.4361 210
Slug 3/0-7 14.8 1/0-7 816 0.3458 242
Fulgur 3/0-19 15 1/0-7 819 0.3458 242
Balanus 3/0-19 16 1/0-7 868 0.3458 242
Stonecrab 3/0-7 14.8 3/0-7 917 0.3458 242
Flustra 3/0-7 15 3/0-7 920 0.3458 242
Crisia 3/0-19 16 3/0-7 969 0.3458 242
Squid 4/0-7 16.3 2/0-7 1011 0.2742 279
Arca 4/0-19 16.5 2/0-7 1012 0.2742 279
Bugula 4/0-19 17.5 2/0-7 1066 0.2742 279
Kingerab 4/0-7 16.3 4/0-7 1137 0.2742 279
Lepas 4/0-19 16.5 4/0-7 1140 0.2742 279
Cassi 4/0-19 17.5 4/0-7 1194 0.2742 279
Bare Neutral: ACSR
Paludina 6-1 6.401 38869 170 2.2126 79
Voluta 6-7 6.96 38869 176 2.2126 79
Bolma 6-7 7.722 38869 194 2.2126 79
Scallop 4-1 7.468 38869 225 1.3896 138
Strombus 4-7 8.179 38869 232 1.3896 138
Carnea 4-7 8.941 38869 253 1.3896 138
Whelk 4-1 7.468 38139 258 1.3896 138
Periwinkle 4-7 8.179 38139 263 1.3896 138
Calma 2-7 8.941 38139 284 1.3896 138
Cockle 2-7 8.179 38139 335 0.8749 183
Gebia 2-7 8.941 38139 354 0.8749 183
Conch 2-7 8.179 37408 384 0.8749 183
Uca 2-7 8.941 37408 405 0.8749 183
Vermeths 1-7 11.379 37043 522 0.6934 210
Atya 1-19 11.379 37043 524 0.6934 210
Janthina 1/0-7 11.379 37408 549 0.5498 242
Ranella 1/0-19 12.522 37408 566 0.5498 242
Neritina 1/0-7 12.395 1/0-6/1 644 0.5498 242
Cenia 1/0-19 12.522 1/0-6/1 646 0.5498 242
Cavolinia 2/0-7 13.564 37043 697 0.4361 279
Clio 2/0-19 13.691 37043 698 0.4361 279
Runcina 2/0-7 13.564 2/0-6/1 796 0.4361 279
Triton 2/0-19 13.691 2/0-6/1 799 0.4361 279
Sanddollar 3/0-7 14.834 1/0-6/1 860 0.3458 322
Aega 3/0-19 14.986 1/0-6/1 862 0.3458 322
Pisa 3/0-19 16.002 1/0-6/1 911 0.3458 322
Cherrystone 3/0-7 14.834 3/0-6/1 987 0.3458 322
Mursia 3/0-19 14.986 3/0-6/1 990 0.3458 322
Mysis 3/0-19 16.002 3/0-6/1 990 0.3458 322
Cuttlefish 4/0-7 16.307 2/0-6/1 1066 0.2742 372
Cerapus 4/0-19 16.459 2/0-6/1 1069 0.2742 372
Nepatus 4/0-19 17.475 2/0-6/1 1121 0.2742 372
Razor 4/0-7 16.307 4/0-6/11 1225 0.2742 372
Zuzara 4/0-19 16.459 4/0-6/1 1229 0.2742 372
Alima 4/0-19 17.475 4/0-6/1 1281 0.2742 372
Callista 266.8-19 19.126 3/0-6/1 1384 0.2176 410
Service Drop Cable (Quadruplex) ANSI/ICEA S-76-474
Code word Phase Conductors Bare Neutral Nominal Weight
kg/km		 Max. DC Phase Conductor     resistance at 20℃
Ω/km		 Ampacity
A
Size & Number of Wires Nominal Diameter
mm		 Size & Number of Wires
Bare Neutral: AAC
Quarter 6-1 6.401 6-7 211 2.2126 78
Clydesdate 4-1 7.468 4-7 315 1.3896 103
Pinto 4-7 8.179 4-7 326 1.3896 136
Mustang 2-7 9.703 2-7 491 0.8749 158
Shire 1-19 11.481 1-19 646 0.6934 158
Libyan 1/0-7 12.395 1/0-7 790 0.5498 182
Criollo 1/0-19 12.522 1/0.19 793 0.5498 182
Orloff 2/0.7 13.564 2/0-7 973 0.4361 210
Percheron 2/0-19 13.691 2/0-19 976 0.4361 210
Mongolian 3/0-7 14.834 3/0-7 1199 0.3458 242
Hanoverian 3/0-19 14.986 3/0-19 1204 0.3458 242
Singlefoot 4/0-7 16.307 4/0-7 1485 0.2742 279
Oldenburg 4/0-19 16.459 4/0.19 1490 0.2742 279
Bare Neutral: AAAC
Bay 6-1 6.401 6-7 217 2.2126 78
French-conch 6-7 6.960 6-7 226 2.2126 78
German-conch 4-1 7.468 4-7 324 1.3896 103
Arabian 4-7 8.179 4-7 336 1.3896 103
Belgian 2-7 9.703 2-7 506 0.8749 136
Saddle 1-19 11.481 2-7 637 0.6934 158
Plow 1/0-7 12.395 1/0-7 814 0.5498 182
Sherland 1/0-19 12.522 1/0-7 817 0.5498 182
Dapple-grey 2/0.7 13.564 2/0-7 1005 0.4361 210
Thoroughbred 2/0-19 13.691 2/0-7 1007 0.4361 210
Dobbin 3/0-7 14.834 3/0-7 1238 0.3458 242
Trotter 3/0-19 14.986 3/0-7 1243 0.3458 242
Pony 4/0-7 16.307 4/0-7 1534 0.2742 279
Walking 4/0-19 16.459 4/0-7 1539 0.2742 279
Bare Neutral: ACSR
Morochuca 6-1 6.401 6-6/1 229 2.2126 78
Chola 6-7 6.960 6-6/1 237 2.2126 78
Morgan 4-1 7.468 4-6/1 344 1.3896 103
Hackney 4-7 8.179 4-6/1 356 1.3896 103
Palomino 2-7 9.703 2-6/1 557 0.8749 136
Albino 1-19 11.481 1-6/1 699 0.6934 158
Standardbred 1/0-7 12.395 1/0-6/1 859 0.5498 182
Costena 1/0-19 12.522 1/0-6/1 862 0.5498 182
Chicoteagues 2/0.7 13.564 2/0-6/1 1060 0.4361 210
Grullo 2/0-19 13.691 2/0-6/1 1063 0.4361 210
Mare 3/0-7 14.834 3/0-6/1 1306 0.3458 242
Suffolk 3/0-19 14.986 3/0-6/1 1313 0.3458 242
Stallion 4/0-7 16.307 4/0-6/1 1622 0.2742 279
Appaloosa 4/0-19 16.459 4/0-6/1 1627 0.2742 279

Certificate Display

Factory Tour

Why choose us?

Professional

Experienced in global cable exports, our team understands international standards and provides responsive multilingual support for customers worldwide.

Professional

Experienced in global cable exports, our team understands international standards and provides responsive multilingual support for customers worldwide.
Read More

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.
Read More

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.
Read More

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.
Read More

FAQs

Who are we?

Uni Cable Group is a trusted supplier of overhead line products, power cables and cable manufacturing materials based in China. Backed by experienced manufacturing resources and a professional export team, we serve utilities, EPC contractors, distributors and cable manufacturers worldwide with reliable supply, technical support and OEM solutions.

Always a pre-production sample before mass production; Always have strict control of the quality from the raw material to finished products according to ISO9001 QC system before shipment.

House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.

We are committed to providing reliable products, competitive pricing and responsive service for customers worldwide. With an integrated manufacturing network, strict quality control and one-stop supply capabilities, we simplify global cable sourcing and create long-term value for our partners.

Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian

Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !

Contact us to get your quote!

  • 24-hour online service
  • Own factory processing

Products

Related Products

FOLLOW US :

Facebook Twitter Youtube

Uni Cable Group provides a comprehensive range of overhead conductors, power cables and cable manufacturing materials, supported by experienced manufacturing resources and strict quality control to meet international project requirements.

our products

NEED HELP

Contact Info

Inquiry

WhatsApp

© Copyright 2025 by Uni Cable Group All Rights Reserved.

Privacy Policy

home

profile

our range

contact us

call us

Contact Us Right Now

Fill out the form to download the brochure
