Product Description

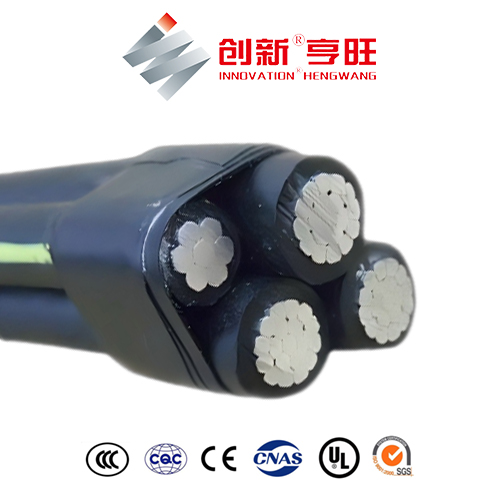

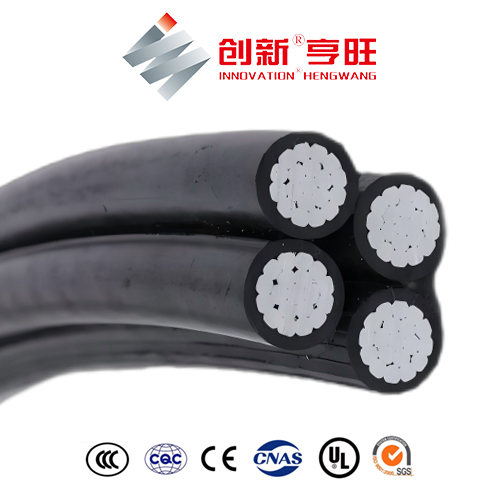

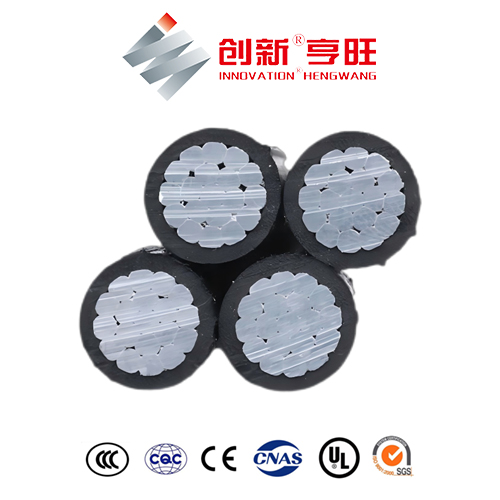

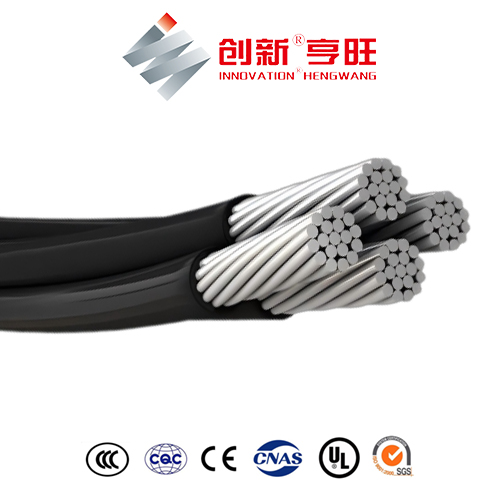

0.6/1kV Aerial Bundle Cable ASNZS 3560.1

Al conductor XLPE Insulated Aerial Aluminium Cable

ABC Application

AS/NZS 3560.1 0.6/1kV Aerial Bundled Cable is designed for residential and rural areas for reducing the bushfire hazards. The XLPE covering contains a high level of carbon black for UV resistance. It is designed for where reliability, safety and low installation cost are required, but it is only for short spans due to increased weight. Aerial bundle cable (ABC) low voltage cable for overhead power distribution offering higher level of safety and reliability and lower power losses than bare conductors.

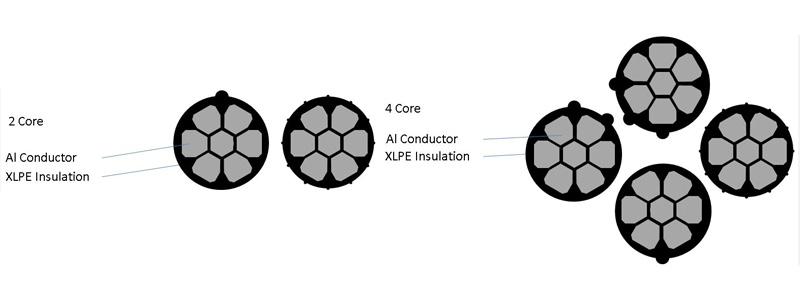

ABC Cables Construction

Insulation: XLPE, UV-resistant.

Neutral-supported: AAC

Core identification: Ribs or numbers or colors stripe.

Low Voltage ABC Characteristics

Voltage rating: 0.6/1kV
Test voltage: 4kV, 5min no breakdown.
Operating temperature: -40°C to +90°C
Minimum laying/installation temperature: -20°C
Minimum bending radius: 12 x OD (overall diameter)

0.6/1kV Aerial Bundle Cable ASNZS 3560.1 Specifications

Number of cores x nominal cross section No.×mm²	Approx.overall diameter mm	Approx. weight Kg/Km	Max. DC conductor resistance at 20℃ Ω/Km	Minimum breaking Load kN	Current rating A
2×16 RM	15	140	1,91	4.4	78
2×25 RM	17.6	210	1,200	7	105
2×35 RM	19.6	270	0,868	9.8	125
2×50 RM	22.8	370	0,641	11.4	150
2×95 RM	30.6	680	0,320	15.3	230
3×25 RM	19	310	1.2	8.8	97
3×35 RM	21.1	410	0,868	9.8	120
3×50 RM	24.6	550	0,641	11.4	140
4×16 RM	18.1	290	1.91	8.8	74
4×25 RM	21.2	410	1.2	14	97
4×35 RM	23.7	550	0.8688	19.6	120
4×50 RM	27.5	740	0.641	28	140
4×70 RM	31.9	1000	0.443	39.2	175
4×95 RM	36.9	1370	0.32	53.2	215
4×120 RM	40.6	1690	0.253	67.2	250
4×150 RM	43.9	2020	0.206	84	280
