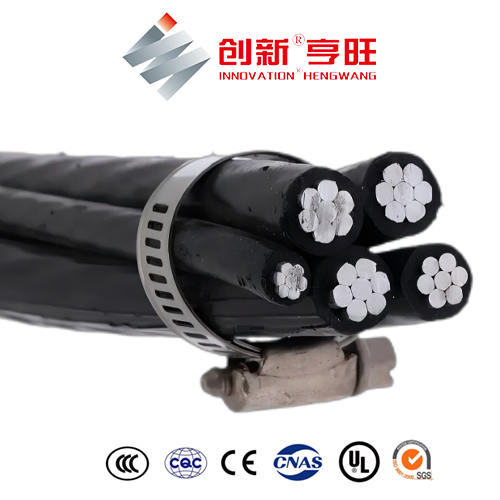

0.6/1kV Aerial Bundle Cable IEC 60502-1 - Image 3

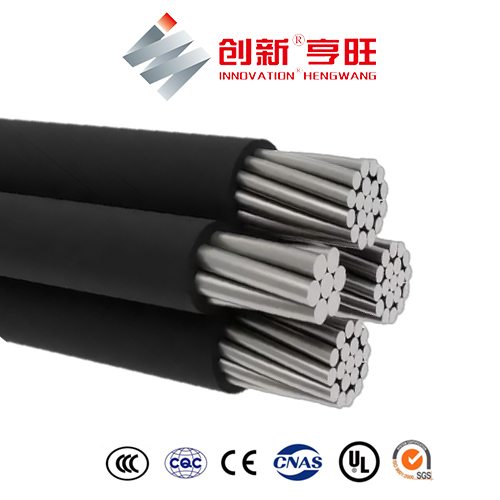

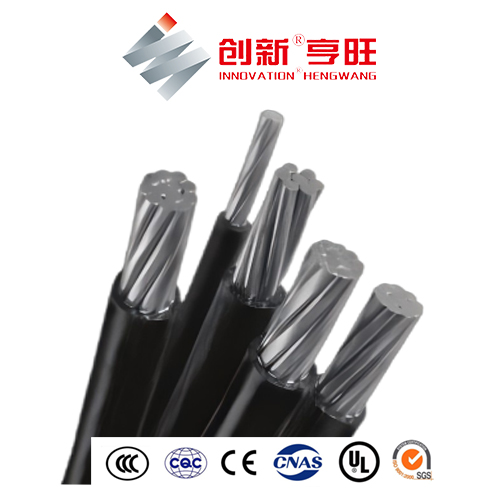

0.6/1kV Aerial Bundle Cable IEC 60502-1

Category: ABC Cable / Aerial Bundled Cable Tags: 0.6/1kV LV ABC Cable, Aerial Bundle conductor, IEC 60502-1 & TNB cable

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

0.6/1kV Aerial Bundle Cable IEC 60502-1

Aerial Bundle Cables Aerial Electrical Power Transmission Line Used AAC conductor Insulated Cable

LV ABC Cable Application

The IEC 60502-1 standard LV ABC Cable Aerial Bundle Conductor is overhead power lines and room entrance wires with a rated AC pressure of 1kv and below. ABC Cable has less installation, maintenance, and operating costs, which can achieve greater economic loss and provide higher security and reliability.

LV ABC Cable Construction

IEC 60502 & TNB Specification 0.6/1(1.2)kv

IEC 60502 & DES/LV/ABC 0.6/1 (1.2)kV

Concentric strands or compact aluminum conductor, polyethylene or crosslinked polyethylene insulation.
Phase conductor: circular stranded, rounded, compact aluminum conductor
Phase Core identification: colour strip, rib or number
Neutral/Messenger conductor: aluminum conductor AAC or all aluminum alloy conduct Or AAAC
Insulation: black polyethylene(PE) or crosslinked polyethylene(XLPE)

Aerial Bundled Cables Characteristics

Voltage rating: 0.6/1kV
Test voltage: 3.5kV, 5min no breakdown.
Operating temperature: -40°C to +90°C
Minimum laying/installation temperature: -20°C
Minimum bending radius: 12x OD (overall diameter)

0.6/1kV Aerial Bundle Cable IEC 60502-1 Specifications

Section Area	Phase Core				Neutral Core				Complete Cable
Section Area	Section Area	No. of Wires	Conductor Diameter	Insulation Thickness	Section Area	No. of Wire	Conductor Diameter	Insulation Thickness	Approx. Diameter	Approx. Weight
mm2	mm2	No.	mm	mm	mm2	No.	mm	mm	mm	kg/km
1×10	1×10	7	4.05	1.0	–	–	–	–	6.1	43
1×16	1×16	7	4.8	1.2	–	–	–	–	7.2	64
1×25	1×25	7	6	1.2	–	–	–	–	8.4	92
1×35	1×35	7	7	1.4	–	–	–	–	9.8	127
1×50	1×50	7	8.1	1.4	–	–	–	–	11.1	165
1×70	1×70	19	10	1.4	–	–	–	–	12.8	230
1×95	1×95	19	11.6	1.6	–	–	–	–	14.8	315
1×120	1×120	19	13	1.6	–	–	–	–	16.2	390
1×150	1×150	19	14.6	1.8	–	–	–	–	18.2	476
1×185	1×185	37	16.2	2	–	–	–	–	20.2	609
2×10	2×10	7	4	1	–	–	–	–	12.2	85
2×16	2×16	7	4.8	1.2	–	–	–	–	14.4	128
2×25	2×25	7	6	1.2	–	–	–	–	16.8	184
2×35	2×35	7	7	1.4	–	–	–	–	19.6	255
2×50	2×50	7	8.1	1.4	–	–	–	–	22.2	329
2×70	2×70	19	10	1.4	–	–	–	–	25.6	459
3×10	3×10	7	4	1	–	–	–	–	13.1	128
3×16	3×16	7	4.8	1.2	–	–	–	–	17.4	192
3×25	3×25	7	6	1.2	–	–	–	–	20.3	276
3×35	3×35	7	7	1.4	–	–	–	–	21.1	382
3×50	3×50	7	8.1	1.4	–	–	–	–	23.9	494
3×70	3×70	19	10	1.4	–	–	–	–	27.6	688
3×95	3×95	19	11.6	1.6	–	–	–	–	31.9	943
3×120	3×120	19	13	1.6	–	–	–	–	34.9	1170
4×10	4×10	7	4	1	–	–	–	–	14.6	171
4×16	4×16	7	4.8	1.2	–	–	–	–	17.4	256
4×25	4×25	7	6	1.2	–	–	–	–	20.3	368
4×35	4×35	7	7	1.4	–	–	–	–	23.7	509
4×50	4×50	7	8.1	1.4	–	–	–	–	26.8	659
4×70	4×70	19	10	1.4	–	–	–	–	30.9	917
4×95	4×95	19	11.6	1.6	–	–	–	–	35.8	1258
4×120	4×120	19	13	1.6	–	–	–	–	39.1	1559
1×16+16	1×16	7	4.8	1.2	1×16	7	5.1	–	12.3	108
1×25+25	1×25	7	6	1.2	1×25	7	6.3	–	14.7	158
1×35+35	1×35	7	7	1.4	1×35	7	7.5	–	17.3	221
1×50+50	1×50	7	8.4	1.4	1×50	7	9	–	20.1	300
2×16+16	2×16	7	4.8	1.2	1×16	7	5.1	–	15.5	172
2×25+25	2×25	7	6	1.2	1×25	7	6.3	–	18.1	250
2×35+35	2×35	7	7	1.4	1×35	7	7.5	–	21.1	348
2×50+50	2×50	7	8.3	1.4	1×50	7	9	–	22.4	464
3×16+16	3×16	7	4.8	1.2	1×16	7	5.1	–	17.4	235
3×25+25	3×25	7	6	1.2	1×25	7	6.3	–	20.3	342
3×35+35	3×35	7	7	1.4	1×35	7	7.5	–	23.7	475
3×50+50	3×50	7	8.1	1.4	1×50	7	9	–	26.8	629
3×70+70	3×70	19	10	1.4	1×70	19	10.5	–	30.9	869
3×95+95	3×95	19	11.6	1.6	1×95	19	12.5	–	35.7	1200
3×35+16	3×35	7	7	1.4	1×16	7	4.8	–	22.2	445
3×50+25	3×50	7	8.1	1.4	1×25	7	6	–	24.8	585
3×70+35	3×70	19	10	1.4	1×35	7	7	–	30.9	815
3×95+50	3×95	19	11.6	1.6	1×50	7	8.1	–	35.7	1108
4×95+35	4×95	19	11.6	1.6	1×35	7	7	–	39.9	1385
3×120+70	3×120	19	13	1.6	1×70	19	10	–	39.1	1399

TNB SPECIFICATION(IEC 60502) ABC Cable

NUMBER OF CORES X NOMINAL CROSS SECTION	OVERAL DIAMETER	WEIGHT	MAXIMUM CONDUCTOR RESISTANCE	MINIMUM BREAKING LOAD	CURRENT RATING
NO.×MM²	MM	KG/KM	Ω/KM	KN	A
1×16+1×25 RM	15.3	160	1.910	2.5	72
3×16+1×25 RM	19.0	290	1.200	4.0	107
3×25+1×25 RM	23.2	400	0.868	5.5	132
3×35+1×25 RM	25.6	500	0.641	8.0	165
3×50+1×35 RM	30.0	680	0.443	10.7	205
3×70+1×50 RM	34.9	920	0.320	13.7	240
3×95+1×70 RM	40.6	1270	0.253	18.6	290
3×120+1×70 RM	44.1	1510	0.206	23.2	334
3×150+1×95 RM	49.2	1870	0.164	28.7	389
3×185+1×120 RM	54.9	2340	0.125	37.2	467
3×25+1×25+1×16 RM	23.2	470	1.910	2.5	72
3×35+1×25+1×16 RM	25.6	560	1.200	4.0	107
3×50+1×35+1×16 RM	30.0	740	0.868	5.5	132
3×70+1×50+1×16 RM	34.9	980	0.641	8.0	165
3×95+1×70+1×16 RM	40.6	1330	0.443	10.7	205
3×120+1×70+1×16 RM	44.1	1580	0.320	13.7	240
3×150+1×95+1×16 RM	49.2	1940	0.206	23.2	334
3×185+1×120+1×16 RM	54.9	2410	1.910	2.5	72

Other cross-sections can be offered upon request.

Aerial Bundled Cables to DES/LVC/ABC Specification & IEC 60502 (AL/XLPE)

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm²	kN	A	mm	kg/km
4×25 RM	3.5	84	21.5	420
4×35 RM	4.9	104	23.9	550
4×120+1×25 RM	16.8	246	43.8	1800
4×185+1×25 RM	25.9	332	50.7	2700

other cross-sections on request
