AL59 – AAAC

Category: Bare Conductor Tag: High Conductivity Alloy Conductor

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

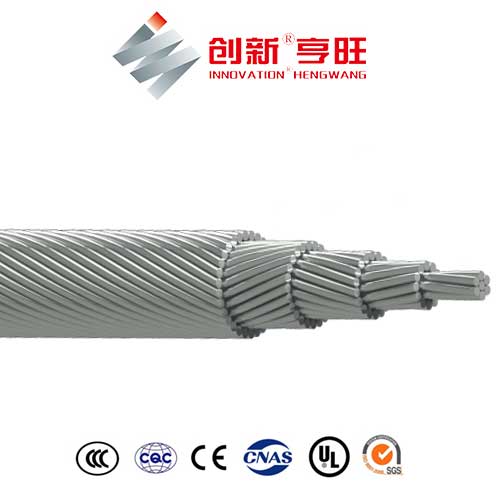

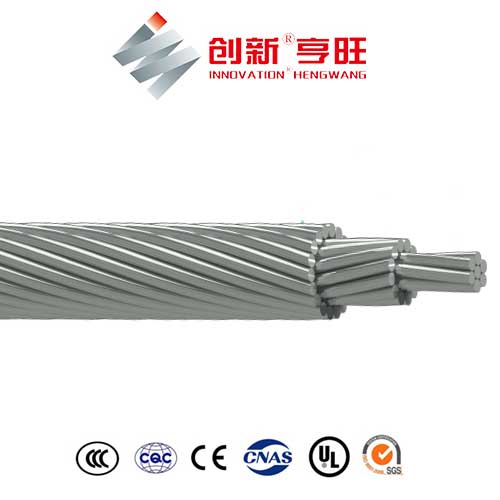

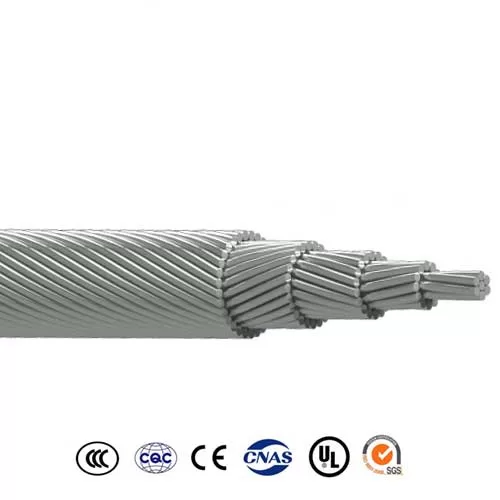

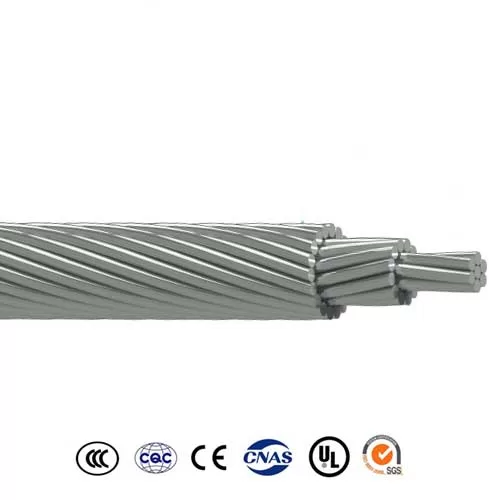

ALL ALUMINUM ALLOYED CONDUCTOR – AL59 (AAAC)

AAAC Application

AL59 – AAAC is an aluminum alloy, that maintain a high conductivity together with a increased tensile strength. Additional corrosion protection is available through different grease alternatives.

AAAC Standard

Conductor SS 424 08 14

AAAC High Conductivity Alloy Conductor (AL5, AL6, AL7, AL57, AL59, AL60, AAAC 1120 etc)

High Conductivity Alloy Conductors : These are low resistance High Conductivity alloy conductors with excellent electrical characteristics, excellent sagtension characteristics and superior corrosion resistance to that of ACSR. As compared to ACSR they have lighter weight, comparable strength and current carrying capacity, lower electrical losses and superior corrosion resistance have given this conductor wide acceptance as a transmission conductor. It has found limited use, however, as a distribution conductor

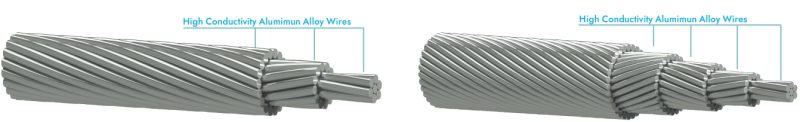

AAAC Construction

Aluminium Alloy wires, concentrically stranded.

Values based on following Specifications:
Swedish Specification SS 424 08 14, SS 424 08 12, EN 50182, AS 1531 & More.

AAAC Features

• Better Conductivity, so better power transmission.
• Lower Operating costs due to lower ohmic losses.
• Can be recycled easily.

AAAC Specifications

Old code	Area [mm2]	No.of wires	Wire diameter [mm]	Conductor diameter [mm]	Weight [kg/km]	Tensile strength [kN]	DC resistance [Ω/km]
62	6244	7	337	101	170	156	4700
99	9931	7	425	128	271	228	2960
159	15860	19	326	163	436	397	1860
241	24120	19	402	201	663	555	1230
329	33000	37	337	236	910	825	899
454	45450	61	308	277	1260	1130	654
593	59360	61	352	317	1640	1430	501
774	77420	61	402	362	2140	1780	384
910	91070	61	436	392	2520	2090	326

Certificate Display

Factory Tour

Why choose us?

Professional

Experienced in global cable exports, our team understands international standards and provides responsive multilingual support for customers worldwide.

Professional

Experienced in global cable exports, our team understands international standards and provides responsive multilingual support for customers worldwide.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

FAQs

Who are we?

Uni Cable Group is a trusted supplier of overhead line products, power cables and cable manufacturing materials based in China. Backed by experienced manufacturing resources and a professional export team, we serve utilities, EPC contractors, distributors and cable manufacturers worldwide with reliable supply, technical support and OEM solutions.

How can we guarantee quality?

Always a pre-production sample before mass production; Always have strict control of the quality from the raw material to finished products according to ISO9001 QC system before shipment.

What can you buy from us?

House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.

Why should you buy from us not from other suppliers?

We are committed to providing reliable products, competitive pricing and responsive service for customers worldwide. With an integrated manufacturing network, strict quality control and one-stop supply capabilities, we simplify global cable sourcing and create long-term value for our partners.

What services can we provide?

Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian

If I need customize Packing Cartons, is that available?

Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !
