All Aluminum Conductor AAC

Category: Bare Conductor Tags: ASC conductors, Hard Drawn Aluminum Conductor, HDA Conductor

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

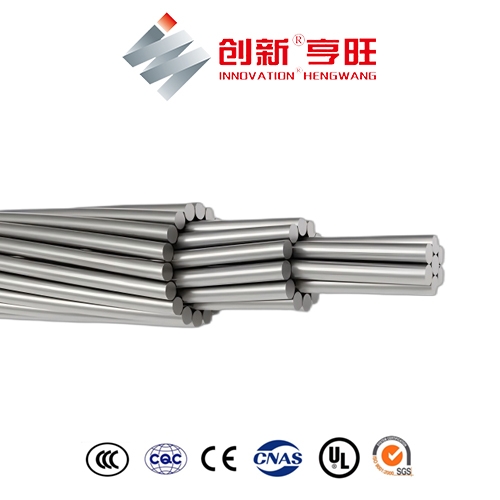

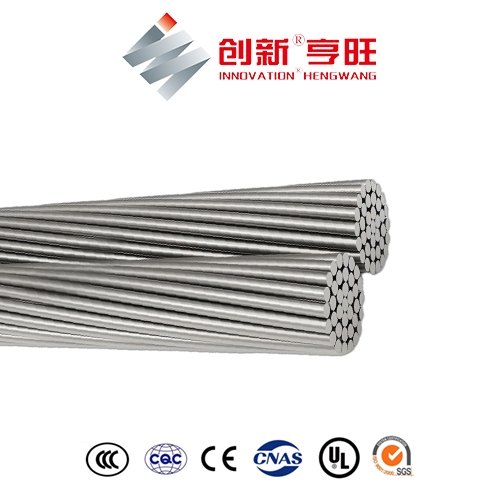

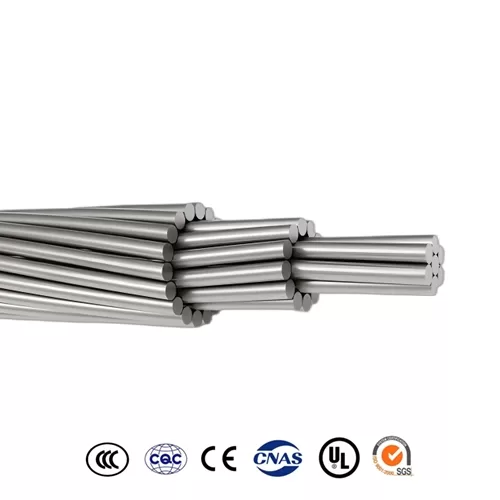

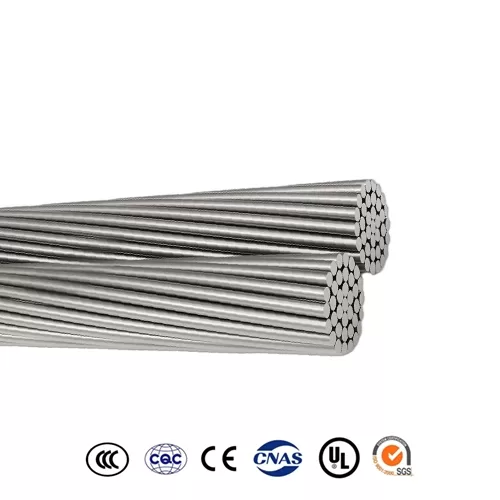

All Aluminum Conductor (AAC)

High Quality Overhead Line All Aluminum conductor

AAC Conductor Application

AAC conductor is also known as aluminum stranded conductor, which are used in urban areas where spans are usually short but high conductivity is required, and are in common use on overhead lines for in low, medium and high voltage. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Although aluminium-to-copper connections can be made, it is better to use aluminium conductors for service connections, as various forms of covered cable are available for this purpose.

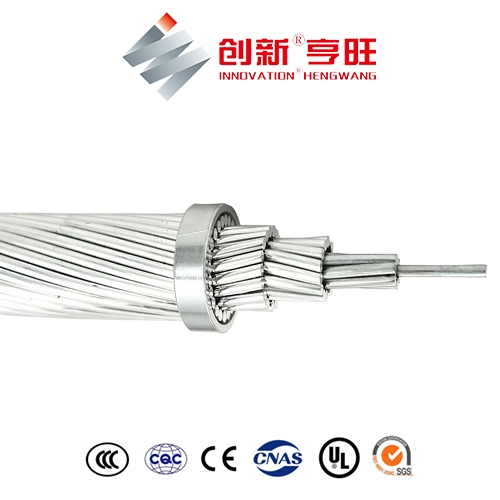

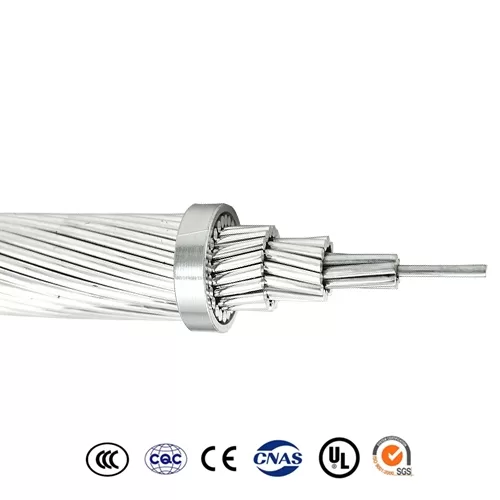

AAC Conductor Construction

Concentric lay stranded Aluminium Conductor is manufactured from electrolytic ally refined aluminium with a minimum purity of 99.7%. and made up of one or more strands of hard drawn 1350 aluminum.

AAC Conductor Characteristics

Electrical Properties

Density at 20℃: 2.703 kg/dm3
Temperature Coefficient at 20°C: 0.00403 (°C)
Resistivity at 20°C: 0.028264Ω•mm2/m
Coefficient of linear expansion: 23 x10-6 (°C)

AAC Conductor Service Conditions

Seismic Acceleration: 0.12 – 0.05g
Ambient Temperature: -5°C – 50°C
Wind Pressure: 80 – 130kg/m2
Isokeraunic Level: 10 – 18
Relative Humidity: 5 – 100%

AAC Conductor Specifications

All Aluminum Conductors (AAC) IEC 61089 Standard

Code	Nominal cross-sectional area mm2	Number of strands	Diameter		Approximate weight of cable kg/km	Nominal Breaking Load kN	Maximum DC Resistance at 20℃ Ω/km
Code	Nominal cross-sectional area mm2	Number of strands	Single wire mm	Conductor mm	Approximate weight of cable kg/km	Nominal Breaking Load kN	Maximum DC Resistance at 20℃ Ω/km
10	10	7	1.35	4.05	27.4	1.95	2.8633
16	16	7	1.71	5.12	43.8	3.04	1.7896
25	25	7	2.13	6.40	68.4	4.50	1.1453
40	40	7	2.70	8.09	109.4	6.80	0.7158
63	63	7	3.39	10.2	172.3	10.39	0.4545
100	100	19	2.59	12.9	274.8	17.00	0.2877
125	125	19	2.89	14.5	343.6	21.25	0.2302
160	160	19	3.27	16.4	439.8	26.40	0.1798
200	200	19	3.66	18.3	549.7	32.00	0.1439
250	250	19	4.09	20.5	687.1	40.00	0.1151
315	315	37	3.29	23.0	867.9	51.97	0.0916
400	400	37	3.71	26.0	1102.0	64.00	0.0721
450	450	37	3.94	27.5	1239.8	72.00	0.0641
600	600	37	4.15	29.0	1377.6	80.00	0.0577
560	560	37	4.39	30.7	1542.9	89.60	0.0515
630	630	61	3.63	32.6	1738.3	100.80	0.0458
710	710	61	3.85	34.6	1959.1	113.60	0.0407
800	800	61	4.09	36.8	2207.4	128.00	0.0361
900	900	61	4.33	39.0	2483.3	144.00	0.0321
1000	1000	61	4.57	41.1	2759.2	160.00	0.0289
1120	1120	91	3.96	43.5	3093.5	179.20	0.0258
1250	1250	91	4.18	46.0	3452.6	200.00	0.0231
1400	1400	91	4.43	48.7	3866.9	224.00	0.0207
1500	1500	91	4.58	50.4	4143.1	240.00	0.0193

All Aluminum Conductors (AAC) DIN 48201-5 Standard

Nominal cross-sectional area		No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km	Current Rating A
Nominal mm2	Actual mm2	No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km	Current Rating A
16	15.89	7/1.70	5.1	44	290	1.8018	83
25	24.25	7/2.10	6.3	67	425	1.1808	108
35	34.36	7/2.50	7.5	94	585	0.8332	134
50	49.48	7/3.00	9	135	810	0.5786	168
50	48.36	19/1.80	9	133	860	0.595	166
70	65.82	19/2.10	10.5	181	1150	0.4371	200
95	93.27	19/2.50	12.5	256	1595	0.3084	248
120	117	19/2.80	14	322	1910	0.2459	285
150	147.1	37/2.25	15.2	406	2570	0.196	328
185	181.6	37/2.50	17.5	501	3105	0.1587	373
240	242.54	61/2.25	20.2	670	4015	0.1191	445
300	299.43	61/2.50	22.5	827	4850	0.0965	506
400	400.14	61/2.89	26	1105	6190	0.07221	602
500	499.83	61/3.23	29.1	1381	7600	0.05781	688
625	626.2	91/2.96	32.6	1733	9690	0.04625	786
800	802.1	91/3.35	36.8	2219	12055	0.03611	907
1000	999.71	91/3.74	41.1	2766	14845	0.02897	1026

All Aluminum Conductors (AAC) ASTM B231 Standard

Code	Nominal cross-sectional area		No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km
Code	AWG or MCM	mm2	No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km
Peachbell	6	13.29	7/1.554	4.67	37	249	2.1692
Pose	4	21.16	7/1.961	5.89	58	396	1.3624
Iris	2	33.61	7/2.474	7.42	93	597	0.8577
Pansy	1	42.39	7/2.776	8.33	117	732	0.6801
Poppy	1/0	53.48	7/3.119	9.36	147	873	0.5390
Aster	2/0	67.42	7/3.503	10.51	186	1100	0.4276
Phlox	3/0	85.03	7/3.932	11.80	234	1347	0.3390
Oxlip	4/0	107.23	7/4.417	13.26	296	1698	0.2688
Valerian	250	126.71	19/2.913	14.57	349	2062	0.2275
Sneezewort	250	126.71	7/4.80	14.4	349	2007	0.2275
Laurel	266.8	135.16	19/3.01	15.05	373	2200	0.2133
Daisy	266.8	135.16	7/4.96	14.9	373	2141	0.2133
Peony	300	152.0	19/3.193	15.97	419	2403	0.1896
Tulip	336.4	170.45	19/3.381	16.91	470	2695	0.1691
Daffodil	350	177.35	19/3.447	17.24	489	2804	0.1625
Canna	397.5	201.42	19/3.673	18.36	555	3184	0.1431
Goldentuft	450	228	19/3.909	19.55	629	3499	0.1264
Syringa	477	241.68	37/2.882	20.19	666	3849	0.1193
Cosmos	477	241.68	19/4.023	20.12	666	3708	0.1193
Hyacinth	500	253.35	37/2.951	20.65	698	4035	0.1138
Zinnia	500	253.35	19/4.12	20.6	698	3888	0.1138
Dahlia	556.5	282	19/4.346	21.73	777	4327	0.1022
Mlstletoe	556.5	282	37/3.114	21.79	777	4362	0.1022
Meadowsweet	600	304	37/3.233	22.63	838	4703	0.0948
Orchid	636	322.25	37/3.33	23.31	838	4985	0.0894
Heuchera	650	329.4	37/3.37	23.59	907.4	51.7	0.0871
Flag	700	354.71	61/2.72	24.48	978	5146	0.0813
Verbena	700	354.71	37/3.493	24.45	978	5487	0.0813
Nasturtium	715.5	362.58	61/2.75	24.76	1000	5874	0.0795
Violet	715.5	362.58	37/3.533	24.74	1000	5609	0.0795
Cattail	750	380	61/2.817	25.35	1048	5985	0.0759
Petunia	750	380	37/3.617	25.32	1048	5875	0.0759
Lilac	795	402.84	61/2.90	26.06	1111	6345	0.0715
Artubus	795	402.84	37/3.724	26.05	1111	6232	0.0715
Snapdragon	900	456.06	61/3.086	27.78	1257	6978	0.0632
Cockscomb	900	456.06	37/3.962	27.73	1257	6848	0.0632
Goldenrod	954	483.42	61/3.177	28.6	1333	7896	0.0596
Magnolia	954	483.42	37/4.079	28.55	1333	7258	0.0596
Camelia	1000	506.71	61/3.251	29.36	1397	7753	0.0569
Hawkweed	1000	506.71	37/4.176	29.23	1397	7608	0.0569
Larkspur	1033.5	523.68	61/3.307	29.76	1444	8012	0.0550
Bluebell	1033.5	523.68	37/4.244	29.72	1444	7863	0.0550
Marigold	1113	563.93	61/3.432	30.89	1555	8628	0.0511
Hawthorn	1192.5	604.26	61/3.551	31.05	1666	9245	0.0477
Narcissus	1272	644.51	61/3.668	33.02	1777	9861	0.0477
Colunbine	1351.5	684.84	61/3.78	34.01	1888	10478	0.0421
Canation	1431	725.10	61/3.89	35.03	1999	10768	0.0398
Gladiolus	1510.5	765.35	61/4.00	35.09	2110	11365	0.0376
Coreopsis	1590	805.68	61/4.099	36.51	2221	11964	0.0358
Jessamine	1750	886.71	61/4.302	38.73	2445	13168	0.0325
Cowslip	2000	1013.42	91/3.76	41.40	2791	15300	0.0285
Lupine	2500	1266.67	91/4.21	46.30	3524	18700	0.0230
Trillum	3000	1520.13	127/3.90	50.75	4232	22500	0.0192
Blue Bonnet	3500	1773.50	127/4.21	54.80	4985	26200	0.0166

All Aluminum Conductors (AAC) BS 215 part1 Standard

Code	Nominal cross-sectional area		No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km
Code	Nominal mm2	Actual mm2	No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km
Midge	22	23.33	7/2.06	6.18	64	399	1.227
Aphis	25	26.4	3/3.35	7.2	73	411	1.081
Gnat	25	26.8	7/2.21	6.6	73	459	1.066
Weevil	30	31.6	3/3.66	7.9	86	486	0.9082
Mosquito	35	37	7/2.59	7.8	101	603	0.7762
Ladybird	40	42.8	7/2.79	8.4	117	687	0.6689
Ant	50	52.83	7/3.10	9.3	145	828	0.5419
Fly	60	63.55	7/3.40	10.2	174	990	0.4505
Bluebottle	70	73.7	7/3.66	11	202	1134	0.3881
Earwig	75	78.5	7/3.78	11.4	215	1194	0.3644
Grasshopper	80	84.1	7/3.91	11.7	230	1278	0.3406
Clegg	90	95.6	7/4.17	12.5	262	1453	0.2994
Wasp	100	106	7/4.39	13.17	290	1600	0.2702
Beetle	100	106	19/2.67	13.4	293	1742	0.2704
Bee	125	132	7/4.90	14.7	361	1994	0.2169
Cricket	150	157.9	7/5.36	16.1	432	2385	0.1818
Hornet	150	157.6	19/3.25	16.25	434	2570	0.1825
Caterpillar	175	186	19/3.53	17.7	512	2863	0.1547
Chafer	200	213.2	19/3.78	18.9	587	3240	0.1349
Spider	225	236.9	19/3.99	20	652	3601	0.1211
Cockroach	250	265.7	19/4.22	21.1	731	4040	0.1083
Butterfly	300	322.7	19/4.65	23.25	888	4875	0.0892
Moth	350	373.2	19/5.00	25	1027	5637	0.0771
Drone	350	373.3	37/3.58	25.1	1029	5745	0.0774
Locust	400	428.5	19/5.36	26.8	1179	6473	0.0671
Centipede	400	415.2	37/3.78	26.46	1145	6310	0.0694
Maybug	450	486.9	37/4.09	28.6	1342	7401	0.0593
Scorpion	500	529.5	37/4.27	29.9	1460	7998	0.0544
Cicada	600	628.6	37/4.65	32.6	1733	9495	0.0459
Tarantula	750	794.6	37/5.23	36.6	2191	12010	0.0363

All Aluminum Conductors (AAC) BS EN 50182 Standard

Code	Nominal cross-sectional area		No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km
Code	Nominal mm2	Actual mm2	No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km
Aphis	25	26.40	3/3.35	7.2	73	411	1.081
Gnat	25	26.8	7/2.21	6.6	73	459	1.066
Weevil	30	31.6	3/3.33	7.9	86	486	0.9082
Mosquito	35	370.	7/2.59	7.9	101	603	0.7762
Ladybird	40	42.8	7/2.79	8.4	117	687	0.6689
Bluebottle	70	73.7	7/3.66	11.0	202	1134	0.3881
Earwig	75	78.5	7/3.78	11.4	215	1194	0.3644
Grasshopper	80	84.1	7/3.91	11.7	230	1278	0.3406
Clegg	90	95.6	7/4.17	12.5	262	1453	0.2994
Beetle	100	106.0	19/2.67	13.4	293	1742	0.2704
Bee	125	132.0	7/4.90	14.7	361	1994	0.2169
Cricket	150	157.9	7/5.36	16.1	432	2385	0.1818
Caterpillar	175	186	19/3.53	17.7	512	2863	0.1547
Spider	225	236.9	19/3.99	20.0	652	3601	0.1211
Moth	350	373.2	19/5.00	25.0	1027	5637	0.07711
Drone	350	373.3	37/3.58	25.1	1029	5745	0.07741
Locust	400	428.5	19/5.36	26.8	1179	6473	0.06710
Maybug	450	486.9	37/4.09	28.6	1342	7401	0.05931
Scorpion	500	529.5	37/4.27	29.9	1460	7998	0.5441
Cicada	600	628.6	37/4.65	32.6	1733	9495	0.04588
Tarantula	750	794.6	37/5.23	36.6	2191	12010	0.03627

AAC-All Aluminum Stranded Conductor AS/NZS 1531

Codename AAC1350	Construction	Calculated Cross-section area	Approx. Overall diameter	Approx. Overall weight	Maximum DC resistance at 20^oC	Calculated breaking load	Equivalent Aluminum area
	No. x mm	mm²	mm	kg/km	Ω/km	kN	mm²
LEO	7 x 2.50	34.36	7.50	94.3	0.833	5.71	33.9
LEONIDS	7 x 2.75	41.58	8.25	113	0.689	6.72	41.1
LIBRA	7 x 3.00	49.48	9.00	135	0.579	7.98	48.9
MARS	7 x 3.75	77.28	11.3	211	0.370	11.8	76.3
MERCURY	7 x 4.50	111.3	13.5	304	0.258	16.9	110
MOON	7 x 4.75	124.0	14.3	339	0.232	18.9	122
NEPTUNE	19 x 3.25	157.6	16.3	433	0.183	24.7	154
ORION	19 x 3.50	182.8	17.5	503	0.157	28.7	180
PLUTO	19 x 3.75	209.8	18.8	576	0.137	31.9	206
SATURN	37 x 3.00	261.6	21.0	721	0.110	42.2	256
SIRIUS	37 x 3.25	307.0	22.8	845	0.094	48.2	301
TAURUS	19 x 4.75	336.7	23.8	924	0.0857	51.3	331
TRITON	37 x 3.75	408.5	26.3	1,120	0.0706	62.2	400
URANUS	61 x 3.25	506.1	29.3	1,400	0.0572	75.2	495
URSULA	61 x 3.50	586.9	31.5	1,620	0.0493	87.3	574
VENUS	61 x 3.75	673.7	33.8	1,860	0.0429	97.2	659

AAC-All Aluminum Conductor GOST 839-80

Nominal Corss-section	Number of Wires	Wire Diameter	Calculated Cross-section	Overall Diameter	D.C. Resistance at 20	Min. Breaking Load	Conductor Weight
mm2	Number of Wires	mm	mm2	mm	Ω/km	Min. Breaking Load	kg/km
10	7	1,35	10,0	4,05	28,631	1950	27,4
16	7	1,70	15,9	5,10	18,007	3021	43,0
25	7	2,13	24,9	6,40	11,498	4500	68,0
35	7	2,50	34,3	7,50	0,8347	5913	94,0
40	7	2,70	40,0	8,09	0,7157	6800	109,4
50	7	3,00	49,5	9,00	0,5784	8198	135,0
63	7	3,39	63,0	10,16	0,4544	10390	172,3
70	7	3,55	69,3	10,70	0,4131	11288	189,0
95	7	4,10	92,4	12,30	0,3114	14784	252,0
100	19	2,59	100,0	12,94	0,2877	17000	274,9
120	19	2,80	117,0	14,00	0,2459	19890	321,0
125	19	2,89	125,0	14,47	0,2301	21250	343,6
150	19	3,15	148,0	15,80	0,1944	24420	406,0
160	19	3,27	160,0	16,37	0,1798	26400	439,8
185	19	3,50	182,8	17,50	0,1574	29832	502,0
200	19	3,66	200,0	18,30	0,1438	32000	549,7
240	19	4,00	238,7	20,00	0,1205	38192	655,0
250	19	4,09	250,0	20,47	0,1150	40000	687,1
300	37	3,15	288,3	22,10	0,1000	47569	794,0
315	37	3,29	315,0	23,05	0,0915	51970	867,5
350	37	3,45	345,8	24,20	0,0833	57057	952,0
400	37	3,66	389,2	25,60	0,0740	63420	1072,0
450	37	3,90	449,1	27,30	0,0642	71856	1206,0
500	37	4,15	500,4	29,10	0,0576	80000	1378,0
550	61	3,37	544,0	30,30	0,0529	89760	1500,0
560	37	4,39	560,0	30,73	0,0531	89600	1542,2
600	61	3,50	586,8	31,50	0,0491	95632	1618,0
630	61	3,63	630,0	32,64	0,0458	100800	1738,4
650	61	3,66	641,7	32,90	0,0450	104575	1771,0
700	61	3,80	691,7	34,20	0,0417	112725	1902,0
710	61	3,85	710,0	34,65	0,0406	113600	1959,2
750	61	3,95	747,4	35,60	0,0386	119584	2062,0

All Aluminum Conductors (AAC) GB/T1179-2008 Standard

Nominal cross-sectional area		No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km
Nominal mm2	Actual mm2	No./Diameter of single wire	Approximate overall diameter of cable mm	Approximate weight of cable kg/km	Nominal Breaking Load dN	Maximum DC Resistance at 20℃ Ω/km
16	15.89	7/1.70	5.1	43.5	2840	1.802
25	25.41	7/2.15	6.45	69.6	4355	1.127
35	34.36	7/2.50	7.5	94.1	5760	0.8332
50	49.48	7/3.00	9	135.5	7930	0.5786
70	71.25	7/3.60	10.8	195.1	10950	0.4018
95	95.14	7/4.16	12.48	260.5	14450	0.3009
120	121.21	19/2.85	14.25	333.5	19420	0.2373
150	148.07	19/3.15	15.75	407.4	23310	0.1943
185	182.8	19/3.50	17.5	503	28440	0.1574
210	209. 85	19/3.75	18.75	577.4	32260	0.1371
240	238.76	19/4.00	20	656.9	36260	0.1205
300	297.57	37/3.20	22.4	820.4	46850	0.0969
400	397.83	37/3.70	25.9	1097	61150	0.0725
500	502.9	37/4.16	29.12	1387	76370	0.0573
630	631.3	61/3.63	32.67	1744	91940	0.0458
800	805.36	61/4.10	36.9	2225	115900	0.0359

Certificate Display

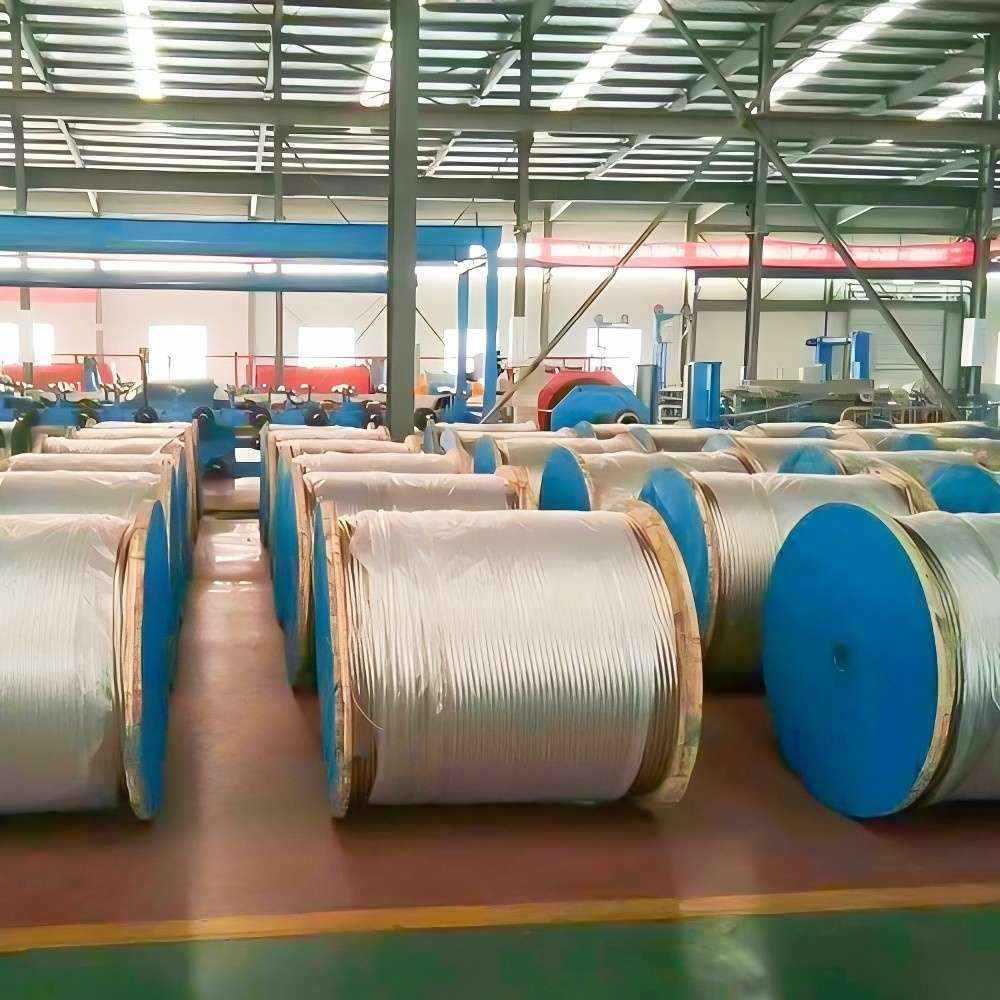

Factory Tour

Why choose us?

Professional

Experienced in global cable exports, our team understands international standards and provides responsive multilingual support for customers worldwide.

Professional

Experienced in global cable exports, our team understands international standards and provides responsive multilingual support for customers worldwide.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

FAQs

Who are we?

Uni Cable Group is a trusted supplier of overhead line products, power cables and cable manufacturing materials based in China. Backed by experienced manufacturing resources and a professional export team, we serve utilities, EPC contractors, distributors and cable manufacturers worldwide with reliable supply, technical support and OEM solutions.

How can we guarantee quality?

Always a pre-production sample before mass production; Always have strict control of the quality from the raw material to finished products according to ISO9001 QC system before shipment.

What can you buy from us?

House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.

Why should you buy from us not from other suppliers?

We are committed to providing reliable products, competitive pricing and responsive service for customers worldwide. With an integrated manufacturing network, strict quality control and one-stop supply capabilities, we simplify global cable sourcing and create long-term value for our partners.

What services can we provide?

Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian

If I need customize Packing Cartons, is that available?

Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !

All Aluminum Conductor AAC

Share:

Product Description

All Aluminum Conductor (AAC)

AAC Conductor Application

AAC Conductor Construction

AAC Conductor Characteristics

AAC Conductor Service Conditions

AAC Conductor Specifications

All Aluminum Conductors (AAC) IEC 61089 Standard

All Aluminum Conductors (AAC) DIN 48201-5 Standard

All Aluminum Conductors (AAC) ASTM B231 Standard

All Aluminum Conductors (AAC) BS 215 part1 Standard

All Aluminum Conductors (AAC) BS EN 50182 Standard

AAC-All Aluminum Stranded Conductor AS/NZS 1531

AAC-All Aluminum Conductor GOST 839-80

All Aluminum Conductors (AAC) GB/T1179-2008 Standard

Certificate Display

Factory Tour

Why choose us?

Professional

Professional

Fast Delivery

Fast Delivery

Good Price

Good Price

High Quality

High Quality

FAQs

Contact us to get your quote!

Products

Related Products

FOLLOW US :

our products

NEED HELP

Contact Info

Inquiry

WhatsApp

Privacy Policy

home

profile

our range

contact us

call us

Contact Us Right Now

Fill out the form to download the brochure
