0.6/1kV CAAI Cable
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description

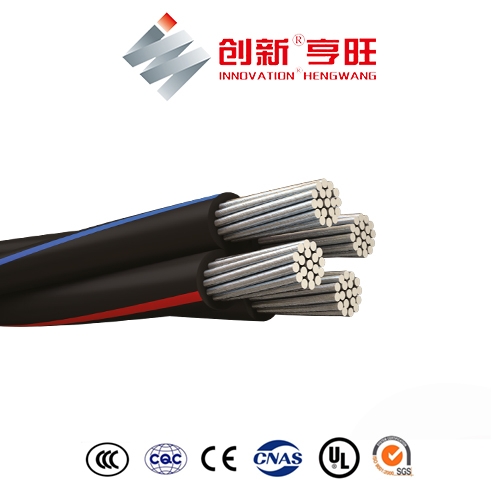

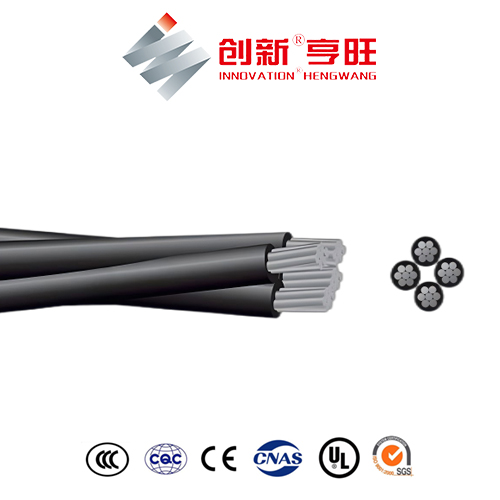

0.6/1kV CAAI Cable, Self-Supporting Cable ICEA S-76-474
Multi-Core Hard Drawn Aluminium Conductor Overhead Service Drop Line
CAAI Cable Application
This cable usually used for urban and rural overhead secondary distribution networks, with voltages up to 1000V. They permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.

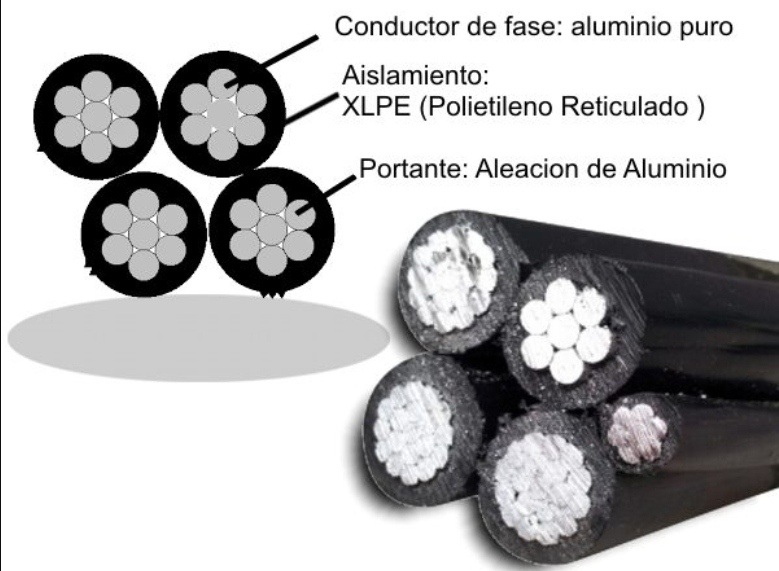

Construction
Phase conductors: Hard drawn aluminum 1350 （AAC）
Insulation: XLPE, UV-resistant.
Neutral-supported: Aluminum alloy-6201 (AAAC)
Street lighting conductor: Hard drawn aluminum 1350 (AAC)
Core identification: Ribs or numbers or colors stripe.
CAAI Cable Characteristics
- Voltage rating: 0.6/1kV
- Test voltage: 4kV, 5min no breakdown.
- Operating temperature: -40°C to +90°C
- Minimum laying/installation temperature: -20°C
- Minimum bending radius: 12 x OD (overall diameter)
CAAI Cable Specifications
| Number of Cores x Nominal Cross Section No. x mm2 |
Phase Conductors(AAC-1350) | Neutral Conductors (AAAC-6201) | Street Lighting Conductor (AAC-1350) | Approx. Completed Cable Overall Diameter mm |
Approx. Completed Cable Weight kg/km |
| No.of wires Min |
No.of wires | No.of wires Min |
|||
| 1×16+ND25 | 6 | 7 | / | 13.5 | 132 |
| 1×16+NA25 | 6 | 7 | / | 15.8 | 158 |
| 1×25+NA25 | 6 | 7 | / | 17 | 186 |
| 2×16+ND25 | 6 | 7 | / | 14.8 | 195 |
| 2×16+NA25 | 6 | 7 | / | 16.4 | 221 |
| 2×25+ND25 | 6 | 7 | / | 16.5 | 252 |
| 2×25+NA25 | 6 | 7 | / | 18.1 | 278 |
| 3×16+NA25 | 6 | 7 | / | 16.7 | 285 |
| 3×25+NA25 | 6 | 7 | / | 20.2 | 370 |
| 2×35+ND25 | 6 | 7 | / | 18 | 309 |
| 2×35+NA25 | 6 | 7 | / | 19.6 | 336 |
| 3×35+NA25 | 6 | 7 | / | 22 | 457 |
| 3×50+NA35 | 6 | 7 | / | 26 | 632 |
| 3×70+NA35 | 12 | 7 | / | 29.6 | 833 |
| 3×95+NA50 | 15 | 7 | / | 33.8 | 1125 |
| 1×16+16+ND25 | 6 | 7 | 6 | 14.8 | 196 |
| 1×16+16+NA25 | 6 | 7 | 6 | 16.5 | 223 |
| 2×16+16+ND25 | 6 | 7 | 6 | 16.7 | 260 |
| 2×25+16+ND25 | 6 | 7 | 6 | 18.2 | 316 |
| 2×16+16+NA25 | 6 | 7 | 6 | 18.1 | 286 |
| 2×25+16+NA25 | 6 | 7 | 6 | 19.6 | 343 |
| 2×35+16+NA25 | 6 | 7 | 6 | 20.8 | 401 |
| 3×16+16+ND25 | 6 | 7 | 6 | 18.8 | 323 |
| 3×16+16+NA25 | 6 | 7 | 6 | 20 | 349 |
| 3×25+16+NA25 | 6 | 7 | 6 | 22 | 435 |
| 3×25+2×16+NA25 | 6 | 7 | 6 | 23.9 | 499 |
| 3×35+16+ND25 | 6 | 7 | 6 | 22.4 | 495 |
| 3×35+16+NA25 | 6 | 7 | 6 | 23.6 | 521 |
| 3×35+2×16+NA25 | 6 | 7 | 6 | 25.4 | 586 |
| 3×50+16+NA25 | 6 | 7 | 6 | 26.4 | 664 |
| 3×50+16+NA35 | 6 | 7 | 6 | 27.1 | 696 |
| 3×50+25+NA35 | 6 | 7 | 6 | 27.8 | 725 |
| 3×70+16+NA50 | 12 | 7 | 6 | 31.5 | 958 |
| 3×70+25+NA50 | 12 | 7 | 6 | 32.2 | 986 |
| 3×95+16+NA50 | 15 | 7 | 6 | 34.1 | 1188 |
| 3×95+16+NA70 | 15 | 7 | 6 | 35 | 1252 |
| 3×120+16+NA50 | 15 | 7 | 6 | 38.9 | 1556 |
