Product Description

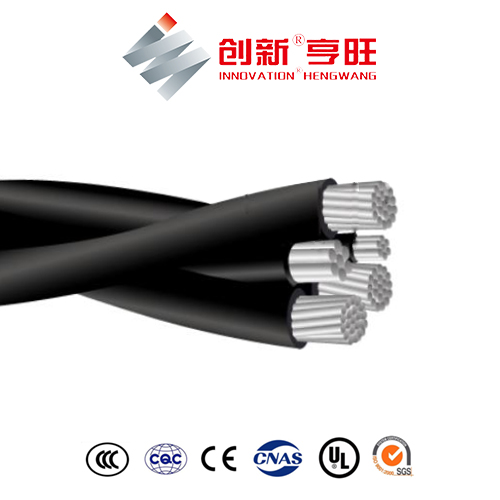

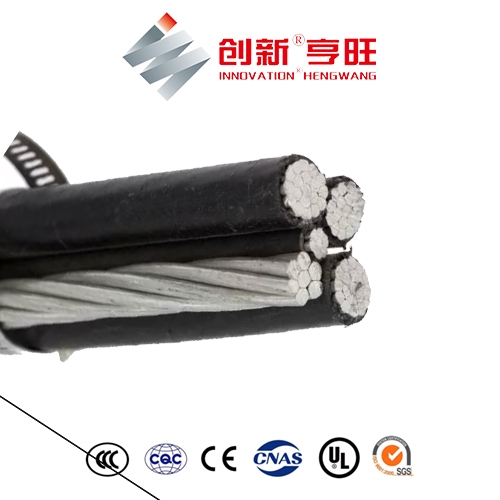

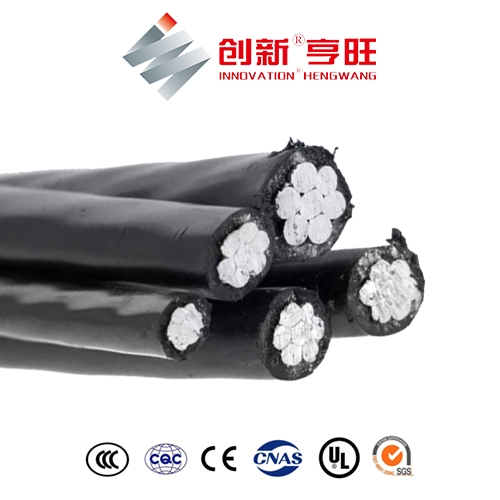

NTP 370.254 ICEA S-76-474 Cable Autoportante Self-Supporting Cable CAAI-S
CAAI-S Cables Application
The Cable Autoportante CAAI-S is a new type of aerial cable for power transmission. It is extensively used in overhead power transmission line. It improves the safety and reliance of electrified wire netting.
CAAI-S Cables Standard
IEC 60228: Conductors of insulated cables.
ASTM A 475: Zinc coated steel wire strand.
NTP-IEC 60228: Conductors of insulated cables.
NTP 370.254: Cables for overhead distribution networks self-supporting XLPE insulated of rated voltages up to and including 0.6/1 kV.

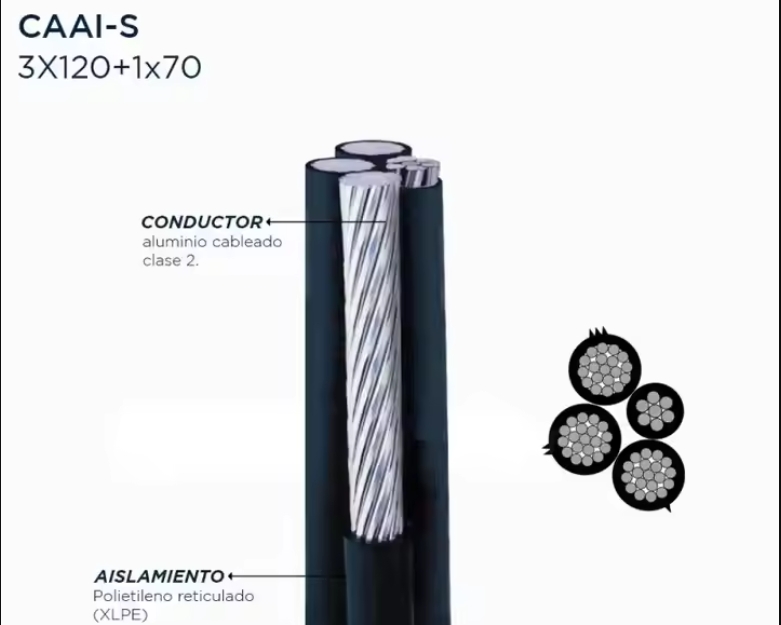

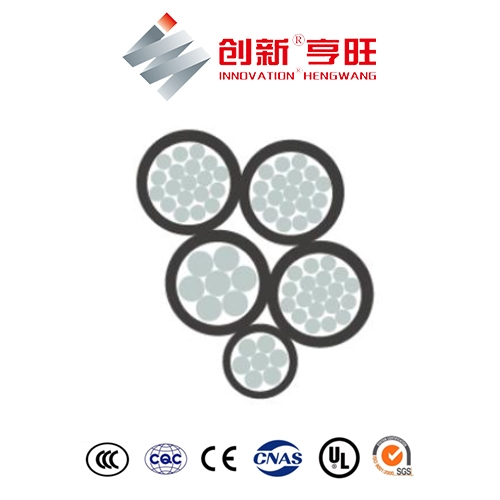

CAAI-S Self-Supporting Aluminum Conductor Cables Construction
Phase conductor: hard drawn aluminum conductor (class 2)
Phase Core identification: colour strip, rib or number
Lighting Conductor: hard drawn aluminum conductor (class 2)
Neutral/Messenger conductor: insulated galvanized steel conductor
Insulation: black crosslinked polyethylene(XLPE)
Cable Autoportante CAAI-S Specifications
| FORMACIÓN | Espesor Aislante fase | Dimens. Del portante | Diámetro exterior (*) | Peso nominal | Resistencia Max. c.c. a 20 ºC ohm/km |
Reactancia inductiva a 60 hz. ohm/km | Factor caída de tensión (**) V/A. km. | |||
| mm | Nº x mm | mm | kg/km | Fase | Alumb. | Fase | Alumbrado | Fase | Alumbrado | |
| 2X16 | 1,14 | 7×1.03 | 16 | 210 | 1,910 | — | 0,0957 | — | 3,493 | — |
| 2X25 | 1,14 | 7×1.20 | 18 | 290 | 1,200 | — | 0,0873 | — | 2,223 | — |
| 2X35 | 1,14 | 7×1.20 | 19 | 360 | 0,868 | — | 0,0825 | — | 1,628 | — |
| 2X50 | 1,52 | 7×2,03 | 23 | 610 | 0,641 | — | 0,0832 | — | 1,225 | — |
| 2X70 | 1,52 | 7×2,03 | 27 | 730 | 0,443 | — | 0,0833 | — | 0,874 | — |
| 2X95 | 1,52 | 7×2,03 | 31 | 890 | 0,320 | — | 0,0807 | — | 0,652 | — |
| 2X120 | 2,03 | 7×2,03 | 34 | 1 090 | 0,253 | — | 0,0785 | — | 0,531 | — |
| 2X25+1×16 | 1,14 | 7×1.20 | 18 | 370 | 1,200 | 1,910 | 0,0925 | 0,1093 | 2,229 | 3,507 |
| 2X35+1×16 | 1,14 | 7×1.20 | 19 | 430 | 0,868 | 1,910 | 0,0862 | 0,1135 | 1,632 | 3,511 |
| 2X50+1×16 | 1,52 | 7×2,03 | 23 | 690 | 0,641 | 1,910 | 0,0843 | 0,1242 | 1,227 | 3,523 |
| 2X70+1×16 | 1,52 | 7×2,03 | 27 | 810 | 0,443 | 1,910 | 0,0822 | 0,1352 | 0,872 | 3,534 |
| 2X95+1×16 | 1,52 | 7×2,03 | 31 | 1 070 | 0,320 | 1,910 | 0,0781 | 0,1436 | 0,649 | 3,543 |
| 2X120+1×16 | 2,03 | 7×2,03 | 34 | 1 170 | 0,253 | 1,910 | 0,0746 | 0,1487 | 0,526 | 3,548 |
| 3X16 | 1,14 | 7×1.03 | 16 | 290 | 1,910 | — | 0,1030 | — | 3,500 | — |
| 3X25 | 1,14 | 7×1.20 | 18 | 400 | 1,200 | — | 0,0952 | — | 2,231 | — |
| 3X35 | 1,14 | 7×1.20 | 19 | 500 | 0,868 | — | 0,0906 | — | 1,636 | — |
| 3X50 | 1,52 | 7×2,03 | 23 | 820 | 0,641 | — | 0,0912 | — | 1,234 | — |
| 3X70 | 1,52 | 7×2,03 | 27 | 1 000 | 0,443 | — | 0,0913 | — | 0,882 | — |
| 3X95 | 1,52 | 7×2,03 | 31 | 1 340 | 0,320 | — | 0,0888 | — | 0,660 | — |
| 3X120 | 2,03 | 7×2,03 | 34 | 1 540 | 0,253 | — | 0,0868 | — | 0,539 | — |
| 3X16+1×16 | 1,14 | 7×1.03 | 16 | 370 | 1,910 | 1,910 | 0,1095 | 0,1095 | 3,507 | 3,507 |
| 3X25+1×16 | 1,14 | 7×1.20 | 18 | 480 | 1,200 | 1,910 | 0,0995 | 0,1163 | 2,236 | 3,514 |
| 3X25+2×16 | 1,14 | 7×1.20 | 18 | 560 | 1,200 | 1,910 | 0,0995 | 0,1163 | 2,236 | 3,514 |
| 3X35+1×16 | 1,14 | 7×1.20 | 19 | 580 | 0,868 | 1,910 | 0,0935 | 0,1208 | 1,639 | 3,519 |
| 3X50+1×16 | 1,52 | 7×2,03 | 23 | 900 | 0,641 | 1,910 | 0,0925 | 0,1323 | 1,235 | 3,531 |
| 3X70+1×16 | 1,52 | 7×2,03 | 27 | 1 080 | 0,443 | 1,910 | 0,0910 | 0,1440 | 0,882 | 3,543 |
| 3X95+1×16 | 1,52 | 7×2,03 | 31 | 1 420 | 0,320 | 1,910 | 0,0875 | 0,1529 | 0,659 | 3,552 |
| 3X120+1×16 | 2,03 | 7×2,03 | 34 | 1 620 | 0,253 | 1,910 | 0,0841 | 0,1583 | 0,536 | 3,558 |
| Name | Phase Cond. Cross Section | Public lighting | Messenger conduct. diam. | Nom. outer diam. (mm) | |
| (mm²) | (mm) | ||||
| CAAI-S 0.6/1 kV 2×16 +1x16mm2+P3.2 | 2 | 16 | 1 x 16 mm² | 3.2 | 16.6 |
| CAAI-S 0.6/1 kV 2×16 +2x16mm2+P3.2 | 2 | 16 | 2 x 16 mm² | 3.2 | 18.8 |
| CAAI-S 0,6/1 kV 2×25+1×16 mm2+P3.2
|
2 | 25 | 1 x 16 mm² | 3.2 | 21.3 |
| CAAI-S 0.6/1 kV 2×25+2x16mm2+P3.2
|
2 | 25 | 2 x 16 mm² | 3.2 | 20.5 |
| CAAI-S 0,6/1 kV 2×35+1×16 mm2+P3.2
|
2 | 35 | 1 x 16 mm² | 3.2 | 23.0 |
| CAAI-S 0,6/1 kV 3×16+1×16 mm2+P3.2
|
3 | 16 | 1 x 16 mm² | 3.2 | 18.7 |
| CAAI-S 0.6/1 kV 3×16+1x16mm2+P3.6
|
3 | 16 | 1 x 16 mm² | 3.6 | 19.0 |
| CAAI-S 0.6/1 kV 3×16+2x16mm2+P3.6
|
3 | 16 | 2 x 16 mm² | 3.6 | 22.3 |
| CAAI-S 0,6/1 kV 3×25+1×16 mm2+P3.2
|
3 | 25 | 1 x 16 mm² | 3.2 | 21.3 |
| CAAI-S 0.6/1 kV 3×25+2x10mm2+P3.6
|
3 | 25 | 2 x 10 mm² | 3.6 | 21.6 |
| CAAI-S 0.6/1 kV 3×25+2x16mm2+P3.2
|
3 | 25 | 2 x 16 mm² | 3.2 | 23.3 |
| CAAI-S 0,6/1 kV 3×35+1×16 mm2+P3.2
|
3 | 35 | 1 x 16 mm² | 3.2 | 23.0 |
| CAAI-S 0.6/1 kV 3×35+2x25mm2+P3.6
|
3 | 35 | 2 x 25 mm² | 3.6 | 26.1 |
| CAAI-S 0.6/1 kV 3×50+1×16 mm2+P4.8
|
3 | 50 | 1 x 16 mm² | 4.8 | 26.4 |
| CAAI-S 0.6/1 kV 3×50+2×16 mm2+ P3.2
|
3 | 50 | 2 x 16 mm² | 3.2 | 27.6 |
| CAAI-S 0.6/1 kV 3×50+2×25 mm2+P3.6
|
3 | 50 | 2 x 25 mm² | 3.6 | 28.9 |
| CAAI-S 0,6/1 kV 3×70
+1×25 mm2+P3.6
|
3 | 70 | 1 x 25 mm² | 3.6 | 30.0 |
| CAAI-S 0.6/1 kV 3×70
+2×16 mm2+P6.35
|
3 | 70 | 2 x 16 mm² | 6.35 | 30.4 |
