E-AY2Y Cable

Category: Low & Medium Voltage Cable Tag: Power Cables 0.6/1 KV PVC and PE Insulated

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Product Description

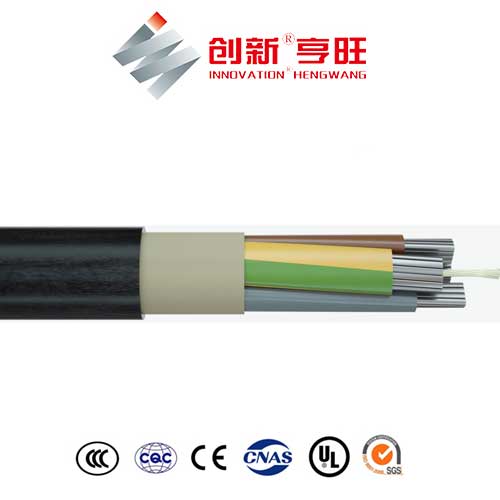

E-AY2Y Cable| PVC Insulated Heavy Current Cable with Aluminium Conductor and PE Outer Sheath

E-AY2Y Cable Application

This power cable is suitable for fixed installations in cable ducts outdoors, in water or underground if no mechanical damage is to be expected.

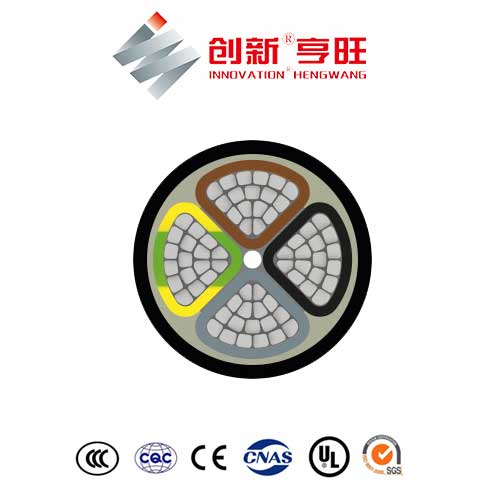

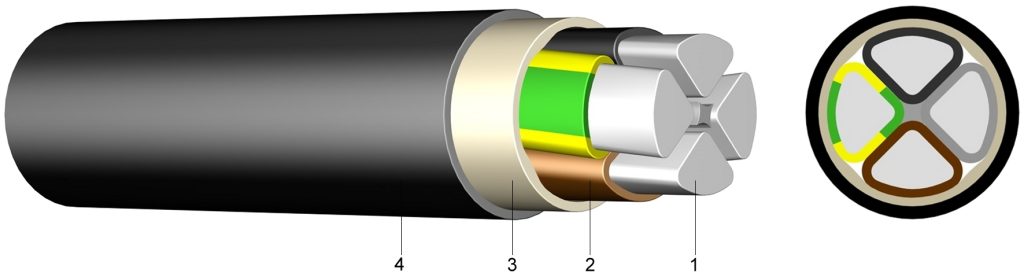

E-AY2Y Cable Construction

1…..solid (RE/SE) or stranded (RM/SM) aluminium wire

2…..core insulation of polyvinylchloride (PVC)
3…..PVC core covering or taping
4…..outer sheath of polyethylene (PE), black, Shore-hardness HD 55-60 UV-resistant

E-AY2Y Cable Standards

ÖVE K 23 and K 603 HD 603 S1 DIN EN 60228 class 1 and 2 (construction) HD 308 S2 (core identification)

E-AY2Y Cable Technical data

Nominal voltage Uo/U		[V]	600 / 1000 Volt
Test voltage		[V]_AC	4000
Temperature range	in motion		– 5°C till +70°C
	fixed		-20°C till +70°C
Operating temperature	short circuit	°C	160
Bending radius	single-core style	x diameter	15
	multi-core style	x diameter	12
Short circuit time	max.	[sec]	5
Flammability	standard		EN 60332-1-2

E-AY2Y Cable Specifications

Number of cores and nominal cross section mm²	Aluminium figure kg/km	Overall diameter appr. mm	Weight appr. kg / km	Current carrying capacity ground A	Current carrying capacity air A
1 x 120 RM	348	20	525	389	302

3 x 240/120 SM	2.470	55	3.994	364	338

4 x 25 RE	294	24	769	102	82
4 x 50 SE	588	28	1.093	144	119
4 x 95 SE	1.117	37	1.930	215	186
4 x 150 SE	1.764	45	2.822	275	246

4 x 25 RM	294	24	769	102	82
4 x 35 SM	412	25	868	123	100
4 x 50 SM	588	28	1.091	144	119
4 x 95 SM	1.117	37	1.930	215	186
4 x 150 SM	1.764	43	2.449	275	246
4 x 185 SM	2.176	48	3.075	313	285
4 x 240 SM	2.822	57	4.509	364	338
