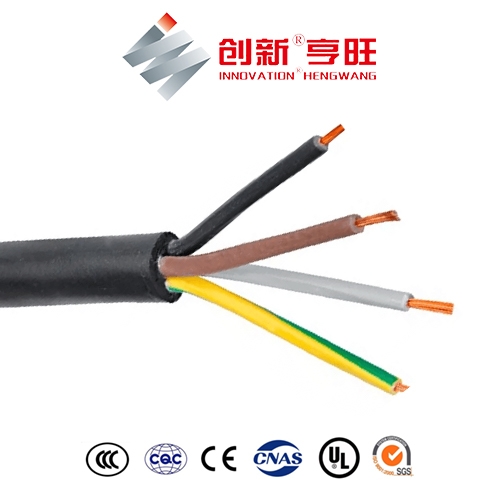

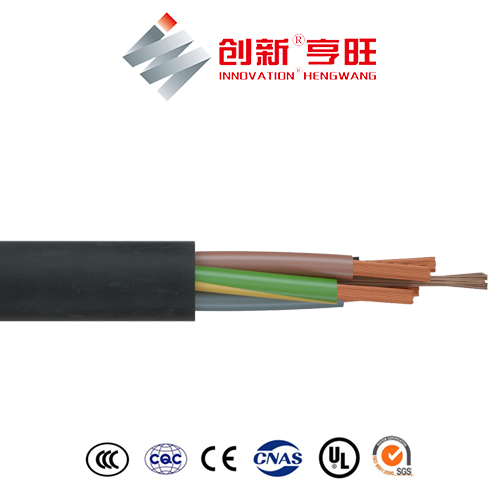

H07RN-F Rubber Sheathed Cable for Medium-Level Mechanical Stress
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
H07RN-F Rubber Cable Application
For general use in dry, humid and wet locations, for outdoor use, for agricultural applications or in locations subject to explosion hazards. Also suitable for connections of industrial and workshop electrical equipment submitted to medium-level mechanical stress. It can be used for fixed installations in temporary buildings as well as for connections of mobile machines and hoists.

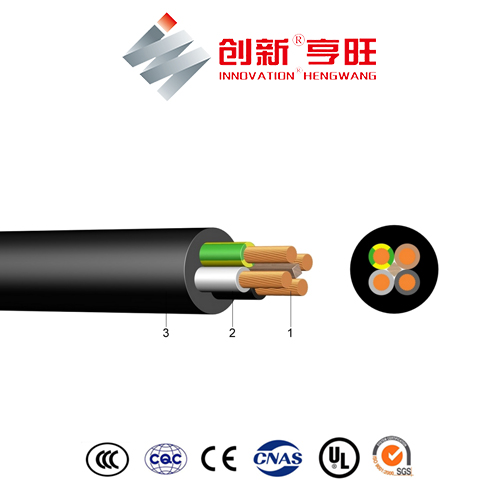

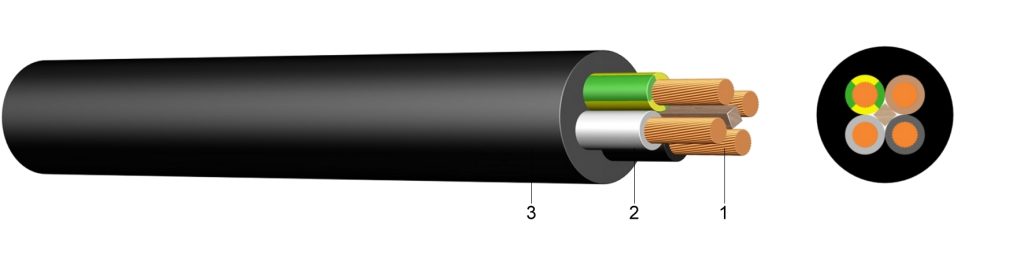

H07RN-F Rubber Cable Construction
2…..EPR rubber insulation
3…..outer sheath of polychloroprene compound (EM2), black, abrasion and oil resistant, flame retardant, special colours on enquiry
H07RN-F Rubber Cable Standards
DIN VDE 0282-4 DIN EN 60228 class 5 (construction) HD 308 S2 (core identification) HD 22.4 S4:2004
H07RN-F Rubber Cable Technical data:
| Nominal voltage Uo/U | [V] | 450 / 750 Volt | |
| Test voltage | [V]AC | 2500 | |
| Temperature range | in motion | -25°C till +60°C | |
| Operating temperature | short circuit | °C | 200 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | one time / fixed | x diameter | 4 |
| Bending radius | in motion | x diameter | 8 |
| Oil-resistant | standard | EN 60811-2-1 | |
| Flammability | standard | EN 60332-1-2 |
H07RN-F Rubber Cable Specifications
| Number of cores and nominal cross section mm² | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter appr. mm | Overall diameter max. value appr. mm | Weight appr. kg / km | |
| 1 X 1,5 | 14,40 | 30 x 0,26 | 5,7 | 7,1 | 50 | |
| 1 X 2,5 | 24,00 | 50 x 0,26 | 6,3 | 7,9 | 66 | |
| 1 X 4 | 38,40 | 56 x 0,31 | 7,2 | 9,0 | 94 | |
| 1 X 6 | 57,60 | 84 x 0,31 | 7,9 | 9,8 | 109 | |
| 1 X 10 | 96,00 | 80 x 0,41 | 9,5 | 11,9 | 182 | |
| 1 X 16 | 153,60 | 128 x 0,41 | 10,8 | 13,4 | 256 | |
| 1 X 25 | 240,00 | 200 x 0,41 | 12,7 | 15,8 | 369 | |
| 1 X 35 | 336,00 | 280 x 0,41 | 14,3 | 17,9 | 482 | |
| 1 X 50 | 480,00 | 400 x 0,41 | 16,5 | 20,6 | 662 | |
| 1 X 70 | 672,00 | 356 x 0,51 | 18,6 | 23,3 | 895 | |
| 1 X 95 | 912,00 | 485 x 0,51 | 20,8 | 26,0 | 1.160 | |
| Number of cores and nominal cross section mm² | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter appr. mm | Overall diameter max. value appr. mm | Weight appr. kg / km | |
| 1 X 120 | 1.152,00 | 614 x 0,51 | 22,8 | 28,6 | 1.430 | |
| 1 X 150 | 1.440,00 | 765 x 0,51 | 25,2 | 31,4 | 1.740 | |
| 1 X 185 | 1.776,00 | 944 x 0,51 | 27,6 | 34,4 | 2.160 | |
| 1 X 240 | 2.304,00 | 1225 x 0,51 | 30,6 | 38,3 | 2.730 | |
| 1 X 300 | 2.880,00 | 1530 x 0,50 | 33,5 | 41,9 | 3.480 | |
| 2 X 1 | 19,20 | 32 x 0,20 | 7,7 | 10,0 | 99 | |
| 2 X 1,5 | 28,80 | 30 x 0,26 | 8,5 | 11,0 | 111 | |
| 2 X 2,5 | 48,00 | 50 x 0,26 | 10,2 | 13,1 | 161 | |
| 2 X 4 | 76,80 | 56 x 0,31 | 11,8 | 15,1 | 238 | |
| 2 X 6 | 115,20 | 84 x 0,31 | 13,1 | 16,8 | 279 | |
| 3 G 1 | 28,80 | 32 x 0,21 | 8,3 | 10,7 | 117 | |
| 3 G 1,5 | 43,20 | 30 x 0,26 | 9,2 | 11,9 | 134 | |
| 3 G 2,5 | 72,00 | 50 x 0,26 | 10,9 | 14,0 | 195 | |
| 3 G 4 | 115,20 | 56 x 0,31 | 12,7 | 16,2 | 290 | |
| 3 G 6 | 172,80 | 84 x 0,31 | 14,1 | 18,0 | 346 | |
| 3 G 10 | 288,00 | 80 x 0,41 | 19,1 | 24,2 | 663 | |
| 3 G 35 | 1.008,00 | 280 x 0,41 | 29,3 | 37,1 | 1.760 | |
| 3 G 50 | 1.440,00 | 400 x 0,41 | 34,1 | 42,9 | 2.390 | |
| 4 G 1,5 | 57,60 | 30 x 0,26 | 10,2 | 13,1 | 165 | |
| 4 G 2,5 | 96,00 | 50 x 0,26 | 12,5 | 15,5 | 245 | |
| 4 G 4 | 153,60 | 56 x 0,31 | 14,0 | 18,0 | 357 | |
| 4 G 6 | 230,40 | 84 x 0,31 | 15,7 | 20,0 | 443 | |
| 4 G 10 | 384,00 | 80 x 0,41 | 20,8 | 26,5 | 818 | |
| 4 G 16 | 614,40 | 128 x 0,41 | 23,8 | 30,1 | 1.150 | |
| 4 G 25 | 960,00 | 200 x 0,41 | 28,9 | 36,6 | 1.700 | |
| 4 G 35 | 1.344,00 | 280 x 0,41 | 32,5 | 41,1 | 2.180 | |
| 4 G 50 | 1.920,00 | 400 x 0,41 | 37,7 | 47,5 | 3.030 | |
| 4 G 70 | 2.688,00 | 356 x 0,51 | 42,7 | 54,0 | 3.990 | |
| 4 G 95 | 3.648,00 | 485 x 0,51 | 48,4 | 61,0 | 5.360 | |
| 4 G 120 | 4.608,00 | 614 x 0,51 | 53,0 | 66,0 | 6.500 | |
| 4 G 150 | 5.760,00 | 765 x 0,51 | 58,0 | 73,0 | 7.990 | |
| 4 G 185 | 7.104,00 | 944 x 0,51 | 64,0 | 80,0 | 9.910 | |
| 4 G 240 | 9.216,00 | 1225 x 0,51 | 72,0 | 91,0 | 12.800 | |
| 5 G 1,5 | 72,00 | 30 x 0,26 | 11,2 | 14,4 | 238 | |
| 5 G 2,5 | 120,00 | 50 x 0,26 | 13,3 | 17,0 | 297 | |
| 5 G 4 | 192,00 | 56 x 0,31 | 15,6 | 19,9 | 453 | |
| 5 G 6 | 288,00 | 84 x 0,31 | 17,5 | 22,2 | 557 | |
| 5 G 10 | 480,00 | 80 x 0,41 | 22,9 | 29,1 | 1.001 | |
| 5 G 16 | 768,00 | 128 x 0,41 | 26,4 | 33,3 | 1.430 | |
| 5 G 25 | 1.200,00 | 200 x 0,41 | 32,0 | 40,4 | 2.096 | |
| 5 G 35 | 1.680,00 | 280 x 0,41 | 44,0 | 50,0 | 3.008 | |
| 5 G 50 | 2.400,00 | 400 x 0,41 | 51,0 | 58,0 | 4.390 | |
| 5 G 70 | 3.360,00 | 356 x 0,51 | 60,0 | 67,0 | 5.296 | |
| 5 G 95 | 4.560,00 | 485 x 0,51 | 61,0 | 71,0 | 6.250 | |
| 5 G 120 | 5.760,00 | 614 x 0,51 | 62,0 | 73,0 | 8.260 | |
| 7 G 1,5 | 100,80 | 30 x 0,26 | 14,7 | 17,0 | 342 | |
| 12 G 1,5 | 172,80 | 30 x 0,26 | 18,6 | 22,2 | 510 | |
| 19 G 1,5 | 273,60 | 30 x 0,26 | 23,0 | 29,0 | 630 | |
| 24 G 1,5 | 345,60 | 30 x 0,26 | 24,3 | 30,7 | 1.000 | |
| 27 G 1,5 | 388,80 | 30 x 0,26 | 23,6 | 32,0 | 1.077 | |
| 7 G 2,5 | 168,00 | 50 x 0,26 | 16,9 | 19,2 | 485 | |
| 12 G 2,5 | 288,00 | 50 x 0,26 | 21,1 | 24,6 | 799 | |
| 19 G 2,5 | 456,00 | 50 x 0,26 | 24,5 | 28,0 | 1.100 | |
| 24 G 2,5 | 576,00 | 50 x 0,26 | 27,3 | 32,5 | 1.250 | |
| 7 G 4 | 268,80 | 56 x 0,31 | 19,6 | 21,5 | 703 |
