Product Description

Aerial Bundle Cables Standards

LV ABC CABLE

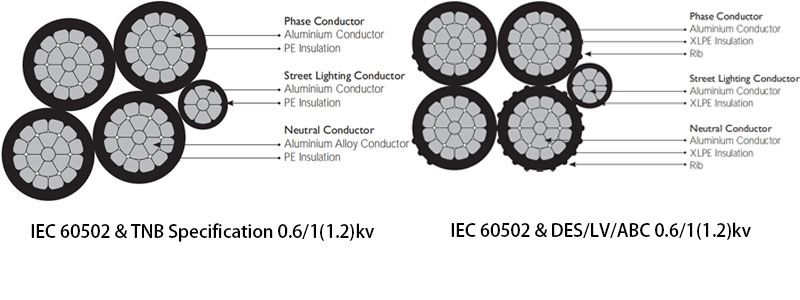

IEC 60502 & TNB, BS-7870, NFC33-209, AS/NZS 3560 PART 1, HD 626 S1, ANSI/ICEA S-76-474 Service Drop Cable

MV ABC CABLE

IEC 60502, NFC 33-226, AS/NZS 3599-1

Aerial Bundle Cables Application

Aerial Bundle Cable is a very innovative concept for overhead power distribution as compared to the conventional bare conductor over- head distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.
This system is ideal for rural distribution and it is especially perfect for installation in difficult terrains such as hilly areas, forest areas, coastal areas etc. ABC is also considered to be ideal for power distribution in congested urban areas with narrow lanes and by-lanes.

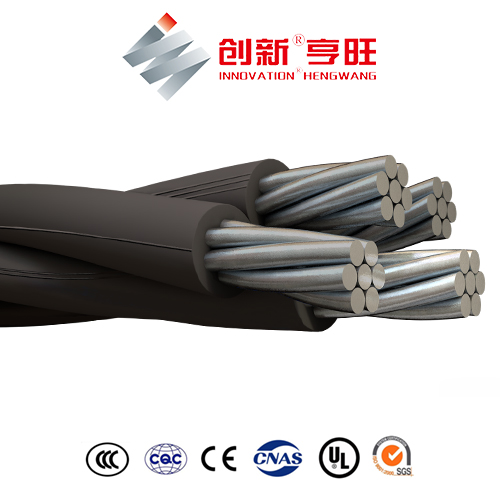

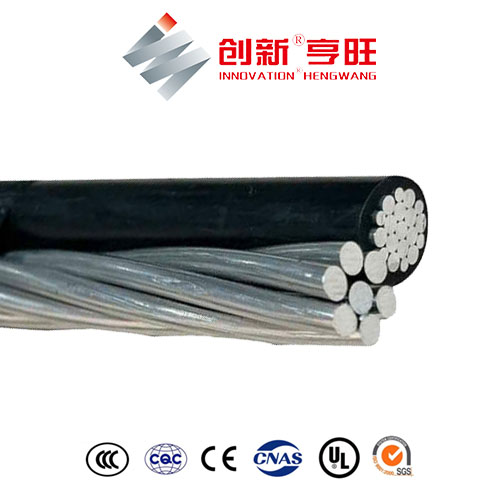

LV ABC Cables Construction

The abc cable can be produced whose construction is phase conductors with neutral bare conductor or phase conductor with insulated neutral conductor.

Aluminum (or Aluminum Alloy)stranded conductor (compacted).
XLPE (or HDPE) insulated, PE, PVC, UV-resistant.
AAC messenger core (AAAC or ACSR or Galvanized steel wire messenger core, bare or covered).
Twisted (or parallel) power cable.
And we can still produce the cables according to the request or customers.

The purpose of messenger wire is:
It acts as load bearing wire
It acts as earth or neutral conductor.
ABC usually has 3 cores plus neutral,the neutral can either be bare or insulated and the cable can have a street light of 16mm². ABC is available in 0.6/1kV, 6.35/11kV 12.7/22kV, 19/33kV. Primarily used for overhead service applications such as street lighting, outdoor light and tempo-rary service for construction.

MV Aerial Bundled Conductor (ABC) Cable

We also supply Medium Voltage Aerial Bundle Cables, in voltages of 6.35/11kV,  12.7/22kV and 19/33kV. Manufactured in accordance with IEC 60502-2, we also have variants made specifically to Australian and New Zealand standards AS/NZS 3599 Part 1. In addition to the XLPE insulation, these higher voltage cables are sheathed with High Density Polyethylene (HDPE). They are available with and without additional screening, in light and heavy duty copper wire or tape, depending on the installation parameters and requirements.

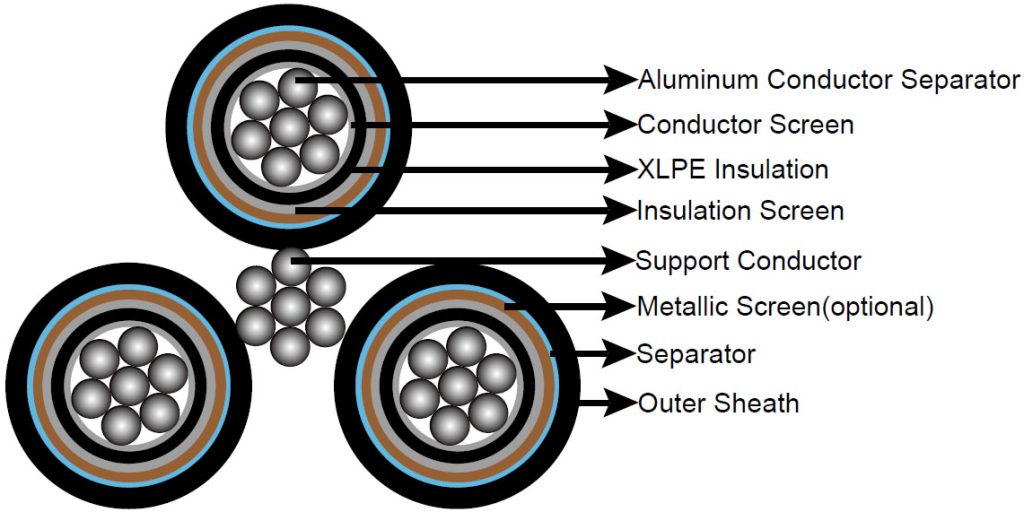

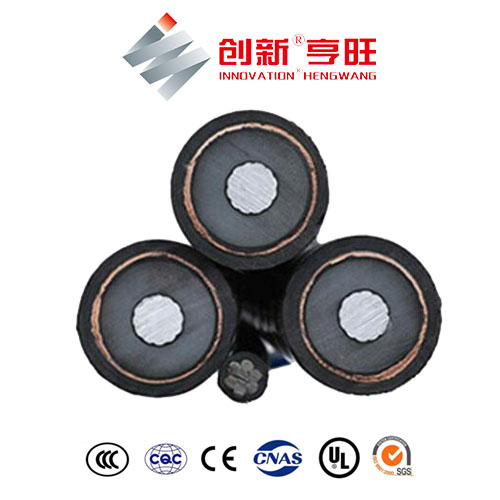

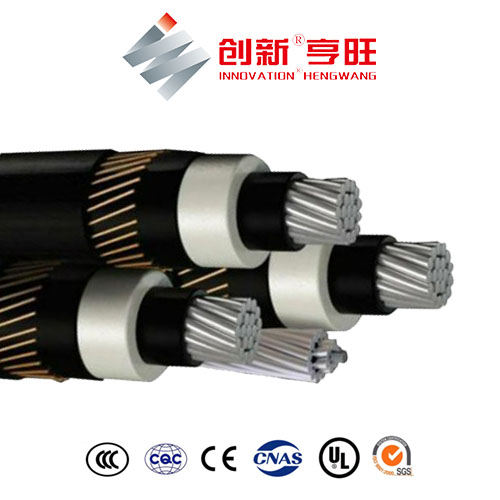

MV ABC Cable Construction

Phase Conductor Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen Extruded semi-conductive layer.
Insulation XLPE.
Insulation Screen Extruded semi-conductive layer.
metallic Screen(optional) Copper wire screen or copper tape screen.
Separator Semi-conductive swellable tape.
Outer Sheath HDPE.
Support Conductor Galvanized steel wires.
Assembly Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

0.6/1kV Aerial Bundle Cable IEC 60502-1

Number of Cores x Nominal Cross Section
No.×mm²		 Approx. Overall Diameter
mm		 Approx. Weight
Kg/Km		 Max. DC Conductor     resistance at 20℃
Ω/Km		 Minimum Breaking Load
kN		 Current Rating
A
3×16+1×25 RM 19 290 1,91 4,0 107
3×25+1×25 RM 23.2 400 1,200 5,5 132
3×35+1×25 RM 25.6 500 0,868 8,0 165
3×50+1×35 RM 30 680 0,641 10,7 205
3×70+1×50 RM 34.9 920 0,443 13,7 240
3×95+1×70 RM 40.6 1270 0,320 18,6 290
3×120+1×70 RM 44.1 1510 0,253 23,2 334
3×150+1×95 RM 49.2 1870 0,206 28,7 389
3×185+1×120 RM 54.9 2340 0,164 37,2 467
3×25+1×25+1×16 RM 23.2 470 1,200 2,5 72
3×35+1×25+1×16 RM 25.6 560 0,868 4,0 107
3×50+1×35+1×16 RM 30 740 0,641 5,5 132
3×70+1×50+1×16 RM 34.9 980 0,443 8,0 165
3×95+1×70+1×16 RM 40.6 1330 0,320 10,7 205
3×120+1×70+1×16 RM 44.1 1580 0,253 13,7 240
3×150+1×95+1×16 RM 49.2 1940 0,206 23,2 334
3×185+1×120+1×16 RM 54.9 2410 0,164 2,5 72

0.6/1kV Aerial Bundle Cable BS 7870

Number of Cores       x Nominal Cross Section
No.×mm²		 Approx.  Overall Diameter
mm		 Approx. Weight
Kg/Km		 Max. DC conductor     resistance at 20℃
Ω/km		 Minimum Breaking Load
kN		 Current Rating
A
1×16 RM 8,0 74 1,910 2,5 72
1×25 RM 9,0 106 1,200 4,0 107
1×35 RM 10,5 138 0,868 5,5 132
1×50 RM 11,8 182 0,641 8,0 165
1×70 RM 13,0 252 0,443 10,7 205
1×95 RM 15,4 333 0,320 13,7 240
1×120 RM 17,0 408 0,253 18,6 290
1×150 RM 19,0 502 0,206 23,2 334
1×185 RM 21,0 611 0,164 28,7 389
1×240 RM 24,0 801 0,125 37,2 467
2×16 RM 15,6 147 1,910 2,5 72
2×25 RM 18,0 208 1,200 4,0 107
2×35 RM 20,0 277 0,868 5,5 132
2×50 RM 23,5 361 0,641 8,0 165
2×70 RM 25,4 505 0,443 10,7 205
2×95 RM 30,3 666 0,320 13,7 240
2×150 RM 38,0 1004 0,206 23,2 334
4×16 RM 18,8 286 1,910 2,5 72
4×25 RM 21,2 430 1,200 4,0 107
4×35 RM 24,1 553 0,868 5,5 132
4×50 RM 27,8 746 0,641 8,0 165
4×70 RM 31,8 1.009 0,443 10,7 205
4×95 RM 37,8 1.332 0,320 13,7 240
4×120 RM 54,4 1.632 0,253 18,6 290
4×50 + 1×25 RM 319 814 0,641/1,200 8,0/4,0 165/107
4×50 + 1×35 RM 319 845 0,641/0,868 8,5/5,5 165/132
4×70 + 1×25 RM 360 1105 0,443/1,200 10,7/4,0 205/107
4×70 + 2×25 RM 400 1217 0,443/1,200 10,7/4,0 205/107
4×95 + 1×25 RM 418 1438 0,320/1,200 13,7/4,0 240/107
4×95 + 2×25 RM 420 1544 0,320/1,200 13,7/4,0 240/107
4×120 + 1×25 RM 590 2050 0,253/1,200 18,6/4,0 290/107

0.6/1kV Aerial Bundle Cable NFC 33-209

Number of Cores x Nominal Cross Section
No.×mm²		 Approx. Overall Diameter
mm		 Approx. Weight
Kg/Km		 Max. DC Conductor     resistance at 20℃
Ω/Km		 Minimum Breaking Load
kN		 Current Rating
A
2×10 RM 12.8 93 3.08 1.5 38
4×10 RM 15.4 183 3.08 1.5 38
2×16 RM 14.8 129 1.91 2.3 72
2×16 RN + 2×1.5 RE 14.8 176 1.91/12.1 2.3 72
4×16 RM 17.8 257 1.91 2.3 72
4×16 RN + 2×1.5 RE 17.8 304 1.91/12.1 2.3 72
2×25 RM 18 202 1.2 3.8 107
2×25 RM + 2×1.5 RE 18 249 1.20/12.1 3.8 107
4×25 RM 21.7 404 1.2 3.8 107
4×25 RM + 2×1.5 RE 21.7 451 1.20/12.1 3.8 107
2×35 RM 20.8 269 0.868 5.2 132
2×35 RM + 2×1.5 RE 20.8 316 0.868/12.1 5.2 132
4×35 RM 25.1 539 0.868 5.2 132
4×35 RM + 2×1.5 RE 25.1 586 0.868/12.1 5.2 132
2×50 RM 23.4 352 0.641 7.6 165
2×50 RM + 2×1.5 RE 23.4 399 0.641/12.1 7.6 165
1×54.6 RM + 3×25 RM 21.7 507 0.630/1.20 3.8 107
1×54.6 RM + 3×25 RM + 1×16 RM 24.3 573 0.630/1.20/1.91 3.8/2.3 107/72
1×54.6 RM + 3×25 RM + 2×16 RM 29.7 639 0.630/1.20/1.91 3.8/2.3 107/72
1×54.6 RM + 3×25 RM + 3×16 RM 31.1 705 0.630/1.20/1.91 3.8/2.3 107/72
1×54.6 RM + 3×35 RM 25.1 615 0.630/0.868 5.2 132
1×54.6 RM + 3×35 RM + 1×16 RM 28.1 680 0.630/0.868/1.91 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 2×16 RM 34.3 748 0.630/0.868/1.91 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 3×16 RM 35.9 814 0.630/0.868/1.91 5.2/2.3 132/72
1×54.6 RM + 3×35 RM + 1×25 RM 28.1 714 0.630/0.868/1.20 5.2/3.8 132/107
1×54.6 RM + 3×50 RM 28.2 741 0.630/0.641 7.6 165
1×54.6 RM + 3×50 RM + 1×16 RM 31.6 806 0.630/0.641/1.91 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 2×16 RM 38.6 875 0.630/0.641/1.91 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 3×16 RM 40.4 940 0.630/0.641/1.91 7.6/2.3 165/72
1×54.6 RM + 3×50 RM + 1×25 RM 31.6 841 0.630/0.641/1.20 7.6/3.8 165/107
1×54.6 RM + 3×70 RM 33 950 0.630/0.443 10.2 205
1×54.6 RM + 3×70 RM + 1×16 RM 37 1014 0.630/0.443/1.91 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 2×16 RM 45.2 1083 0.630/0.443/1.91 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 3×16 RM 47.3 1148 0.630/0.443/1.91 10.2/2.3 205/72
1×54.6 RM + 3×70 RM + 1×25 RM 37 1048 0.630/0.443/1.20 10.2/3.8 205/107
1×54.6 RM + 3×70 RM + 2×25 RM 45.2 1150 0.630/0.443/1.20 10.2/3.8 205/107
1×54.6 RM + 3×70 RM + 3×25 RM 47.3 1250 0.630/0.443/1.20 10.2/3.8 205/107
1×54.6 RM + 3×95 RM 37.4 1176 0.630/0.320 13.5 240
1×54.6 RM + 3×95 RM + 1×16 RM 41.9 1243 0.630/0.320/1.91 13.5/2.3 240/72

0.6/1kV Aerial Bundle Cable ASNZS 3560.1

Number of cores x nominal cross section
No.×mm²		 Approx.overall diameter
mm		 Approx. weight
Kg/Km		 Max. DC conductor     resistance at 20℃
Ω/Km		 Minimum breaking Load
kN		 Current rating
A
2×16 RM 15 140 1,91 4.4 78
2×25 RM 17.6 210 1,200 7 105
2×35 RM 19.6 270 0,868 9.8 125
2×50 RM 22.8 370 0,641 11.4 150
2×95 RM 30.6 680 0,320 15.3 230
3×25 RM 19 310 1.2 8.8 97
3×35 RM 21.1 410 0,868 9.8 120
3×50 RM 24.6 550 0,641 11.4 140
4×16 RM 18.1 290 1.91 8.8 74
4×25 RM 21.2 410 1.2 14 97
4×35 RM 23.7 550 0.8688 19.6 120
4×50 RM 27.5 740 0.641 28 140
4×70 RM 31.9 1000 0.443 39.2 175
4×95 RM 36.9 1370 0.32 53.2 215
4×120 RM 40.6 1690 0.253 67.2 250
4×150 RM 43.9 2020 0.206 84 280

NFA2X LV HD 626 S1 Aerial Bundle Cable (ABC) 0.6/1kV

NUMBER OF CORES X NOMINAL CROSS SECTION MIN. BREAKING LOAD OF CONDUCTOR STRAND CURRENT RATING IN THE AIR OUTER DIAMETER TOTAL WEIGHT
MM² KN A MM KG/KM
2x 16 RM 1,910 2,5 72 147
2x 25 RM 1,200 4,0 107 208
2x 35 RM 0,868 5,5 132 277
2x 50 RM 0,641 8,0 165 361
4x 16 RM 1,910 2,5 72 286
4x 25 RM 1,200 4,0 107 430
4x 35 RM 0,868 5,5 132 553
4x 50 RM 0,641 8,0 165 746
4x 70 RM 0,443 10,7 205 1009
4x 95 RM 0,320 13,7 240 1332
4x 120 RM 0,253 18,6 290 1632
4x 35 + 1x 35 RM 0,868/0,868 5,5/5,5 132/132 694
4x 50 + 1x 25 RM 0,641/1,200 8,0/4,0 165/107 814
4x 50 + 1x 35 RM 0,641/0,868 8,5/5,5 165/132 845
4x 70 + 1x 25 RM 0,443/1,200 10,7/4,0 205/107 1105
4x 70 + 2x 25 RM 0,443/1,200 10,7/4,0 205/107 1217
4x 70 + 1x 35 RM 0,443/0,868 10,7/5,5 205/132 1150
4x 70 + 2x 35 RM 0,443/0,868 10,7/5,5 205/132 1289
4x 95 + 1x 25 RM 0,320/1,200 13,7/4,0 240/107 1438
4x 95 + 1x 35 RM 0,320/0,868 13,7/5,5 240/132 1467
4x 95 + 2x 25 RM 0,320/1,200 13,7/4,0 240/107 1544

Other cross-sections on request

ANSI/ICEA S-76-474 Overhead Service Drop Cable Aluminum Conductor

Service Drop Cable (Duplex) ANSI/ICEA S-76-474
Code word Phase Conductors Bare Neutral Nominal Weight
kg/km		 Max. DC Phase Conductor     resistance at 20℃
Ω/km		 Ampacity
A
Size & Number of Wires Nominal Diameter
mm		 Size & Number of Wires
Bare Neutral: AAC
Pekingese 6-1 6.4 6-7 94 2.2126 78
Collie 6-7 6.9 6-7 97 2.2126 78
Cocker 6-7 7.7 6-7 106 2.2126 78
Dachshund 4-1 7.5 4-7 141 1.3896 103
Spaniel 4-7 8.2 4-7 146 1.3896 103
Cairn 4-7 8.9 4-7 156 1.3896 103
Doberman 2-7 9.7 2-7 223 0.8749 136
Airedale 1-19 11.5 1-7 290 0.6934 158
Basset 1/0-7 12.4 1/0-7 359 0.5498 182
Malemure 1/0-19 12.5 1/0-7 359 0.5498 182
Bare Neutral: AAAC
Chihuahua 6-1 6.4 6-7 94 2.5703 78
Vizsla 6-7 6.9 6-7 97 2.5703 78
Harner 4-1 7.5 4-7 143 1.3896 103
Whippet 4-7 8.2 4-7 146 1.3896 103
Schnauzer 2-7 9.7 2-7 223 0.8749 136
Afghan 1/0-7 12.4 1/0-7 360 0.5498 182
Heeler 1/0-19 12.5 1/0-7 360 0.5498 182
Bare Neutral: ACSR
Setter 6-1 6.4 6-6/1 94 2.2126 78
Shepherd 6-7 6.9 6-6/1 97 2.2126 78
Retriever 6-7 7.7 6-6/1 106 2.2126 78
Eskimo 4-1 7.5 4-6/1 141 1.3896 103
Terrier 4-7 8.2 4-6/1 146 1.3896 103
Yorkshire 4-7 8.9 4-6/1 156 1.3896 103
Chow 2-7 9.7 2-6/1 223 0.8749 136
Labrador 1-19 11.5 1-6/1 290 0.6934 158
Bloodhound 1/0-7 12.4 1/0-6/1 359 0.5498 182
Bull 1/0-19 12.5 1/0-6/1 359 0.5498 182
Service Drop Cable (Triplex) ANSI/ICEA S-76-474
Code word Phase Conductors Bare Neutral Nominal Weight
kg/km		 Max. DC Phase Conductor     resistance at 20℃
Ω/km		 Ampacity
A
Size & Number of Wires Nominal Diameter
mm		 Size & Number of Wires
Bare Neutral: AAC
Halotis 6-1 6.4 6-7 152 2.2126 78
Pike 6-7 6.2 6-7 143 2.2126 78
Patella 6-7 7.0 6-7 159 2.2126 78
Albus 6-7 7.7 6-7 198 2.2126 78
Fusus 4-1 7.5 4-7 229 1.3896 103
Oyster 4-7 8.2 4-7 237 1.3896 103
Argo 4-7 8.9 4-7 258 1.3896 103
Clam 2-7 9.7 2-7 359 0.8749 136
Thia 2-7 10.5 2-7 383 0.8749 136
Mussel 2-7 9.7 2-7 359 0.8749 136
Pyrula 1-7 11.4 1-7 467 0.6934 158
Hyas 1-19 11.5 1-7 469 0.6934 158
Murex 1/0-7 12.4 1/0-7 513 0.5498 182
Purpura 1/0-19 12.5 1/0-7 515 0.5498 182
Nasa 2/0-7 13.6 2/0-7 710 0.4361 210
Trophon 2/0-19 13.7 2/0-7 713 0.4361 210
Quahog 3/0-7 15.9 3/0-7 926 0.3458 242
Ione 3/0-19 16.0 3/0-7 929 0.3458 242
Melita 3/0-19 15 3/0-19 881 0.3458 242
Coquina 4/0-7 16.3 4/0-7 1089 0.2742 279
Tusk 4/0-7 17.3 4/0-7 1141 0.2742 279
Apus 4/0-19 17.5 4/0-7 1144 0.2742 279
Portunus 4/0-19 16.5 4/0-19 1091 0.2742 279
Chiton 266.8-19 18.9 266.8-19 1409 0.2176 310
Nannynose 336.4-19 21 336.4-19 1749 0.1725 330
Bare Neutral: AAAC
Homarus 6-1 6.4 6-7 159 2.2126 78
Minex 6-1 13.3 6-7 159 2.2126 78
Cabera 6-7 6.9 6-7 165 2.2126 78
Hippa 6-7 6.9 6-7 165 2.2126 78
Artemia 4-1 7.5 6-7 214 1.3896 103
Maira 4-7 8.2 6-7 247 1.3896 103
Crab 4-7 8.2 6-7 222 1.3896 103
Luidia 4-1 7.5 6-7 214 1.3896 103
Prawn 4-1 7.5 4-7 240 1.3896 103
Metalia 4-7 8.2 4-7 247 1.3896 103
Barnacles 4-7 8.2 4-7 247 1.3896 103
Solaster 2-7 9.7 4-7 333 0.8749 136
Pagarus 2-7 10.5 4-7 357 0.8749 136
Shrimp 2-7 9.7 2-7 374 0.8749 136
Lobster 2-7 10.5 2-7 397 0.8749 136
Encope 1-19 11.5 2-7 461 0.6934 158
Sanderab 1/0-7 12.4 2-7 537 0.5498 182
Echinus 1/0-19 12.5 2-7 539 0.5498 182
Gammarus 1/0-7 12.4 1/0-7 601 0.5498 182
Leda 1/0-19 12.5 1/0-7 603 0.5498 182
Crayfish 2/0-7 13.6 2-7 631 0.4361 210
Sipho 2/0-19 13.7 2-7 634 0.4361 210
Dungenese 2/0-7 13.6 2/0-7 740 0.4361 210
Cyclops 2/0-19 13.7 2/0-7 743 0.4361 210
Slug 3/0-7 14.8 1/0-7 816 0.3458 242
Fulgur 3/0-19 15 1/0-7 819 0.3458 242
Balanus 3/0-19 16 1/0-7 868 0.3458 242
Stonecrab 3/0-7 14.8 3/0-7 917 0.3458 242
Flustra 3/0-7 15 3/0-7 920 0.3458 242
Crisia 3/0-19 16 3/0-7 969 0.3458 242
Squid 4/0-7 16.3 2/0-7 1011 0.2742 279
Arca 4/0-19 16.5 2/0-7 1012 0.2742 279
Bugula 4/0-19 17.5 2/0-7 1066 0.2742 279
Kingerab 4/0-7 16.3 4/0-7 1137 0.2742 279
Lepas 4/0-19 16.5 4/0-7 1140 0.2742 279
Cassi 4/0-19 17.5 4/0-7 1194 0.2742 279
Bare Neutral: ACSR
Paludina 6-1 6.401 38869 170 2.2126 79
Voluta 6-7 6.96 38869 176 2.2126 79
Bolma 6-7 7.722 38869 194 2.2126 79
Scallop 4-1 7.468 38869 225 1.3896 138
Strombus 4-7 8.179 38869 232 1.3896 138
Carnea 4-7 8.941 38869 253 1.3896 138
Whelk 4-1 7.468 38139 258 1.3896 138
Periwinkle 4-7 8.179 38139 263 1.3896 138
Calma 2-7 8.941 38139 284 1.3896 138
Cockle 2-7 8.179 38139 335 0.8749 183
Gebia 2-7 8.941 38139 354 0.8749 183
Conch 2-7 8.179 37408 384 0.8749 183
Uca 2-7 8.941 37408 405 0.8749 183
Vermeths 1-7 11.379 37043 522 0.6934 210
Atya 1-19 11.379 37043 524 0.6934 210
Janthina 1/0-7 11.379 37408 549 0.5498 242
Ranella 1/0-19 12.522 37408 566 0.5498 242
Neritina 1/0-7 12.395 1/0-6/1 644 0.5498 242
Cenia 1/0-19 12.522 1/0-6/1 646 0.5498 242
Cavolinia 2/0-7 13.564 37043 697 0.4361 279
Clio 2/0-19 13.691 37043 698 0.4361 279
Runcina 2/0-7 13.564 2/0-6/1 796 0.4361 279
Triton 2/0-19 13.691 2/0-6/1 799 0.4361 279
Sanddollar 3/0-7 14.834 1/0-6/1 860 0.3458 322
Aega 3/0-19 14.986 1/0-6/1 862 0.3458 322
Pisa 3/0-19 16.002 1/0-6/1 911 0.3458 322
Cherrystone 3/0-7 14.834 3/0-6/1 987 0.3458 322
Mursia 3/0-19 14.986 3/0-6/1 990 0.3458 322
Mysis 3/0-19 16.002 3/0-6/1 990 0.3458 322
Cuttlefish 4/0-7 16.307 2/0-6/1 1066 0.2742 372
Cerapus 4/0-19 16.459 2/0-6/1 1069 0.2742 372
Nepatus 4/0-19 17.475 2/0-6/1 1121 0.2742 372
Razor 4/0-7 16.307 4/0-6/11 1225 0.2742 372
Zuzara 4/0-19 16.459 4/0-6/1 1229 0.2742 372
Alima 4/0-19 17.475 4/0-6/1 1281 0.2742 372
Callista 266.8-19 19.126 3/0-6/1 1384 0.2176 410
Service Drop Cable (Quadruplex) ANSI/ICEA S-76-474
Code word Phase Conductors Bare Neutral Nominal Weight
kg/km		 Max. DC Phase Conductor     resistance at 20℃
Ω/km		 Ampacity
A
Size & Number of Wires Nominal Diameter
mm		 Size & Number of Wires
Bare Neutral: AAC
Quarter 6-1 6.401 6-7 211 2.2126 78
Clydesdate 4-1 7.468 4-7 315 1.3896 103
Pinto 4-7 8.179 4-7 326 1.3896 136
Mustang 2-7 9.703 2-7 491 0.8749 158
Shire 1-19 11.481 1-19 646 0.6934 158
Libyan 1/0-7 12.395 1/0-7 790 0.5498 182
Criollo 1/0-19 12.522 1/0.19 793 0.5498 182
Orloff 2/0.7 13.564 2/0-7 973 0.4361 210
Percheron 2/0-19 13.691 2/0-19 976 0.4361 210
Mongolian 3/0-7 14.834 3/0-7 1199 0.3458 242
Hanoverian 3/0-19 14.986 3/0-19 1204 0.3458 242
Singlefoot 4/0-7 16.307 4/0-7 1485 0.2742 279
Oldenburg 4/0-19 16.459 4/0.19 1490 0.2742 279
Bare Neutral: AAAC
Bay 6-1 6.401 6-7 217 2.2126 78
French-conch 6-7 6.960 6-7 226 2.2126 78
German-conch 4-1 7.468 4-7 324 1.3896 103
Arabian 4-7 8.179 4-7 336 1.3896 103
Belgian 2-7 9.703 2-7 506 0.8749 136
Saddle 1-19 11.481 2-7 637 0.6934 158
Plow 1/0-7 12.395 1/0-7 814 0.5498 182
Sherland 1/0-19 12.522 1/0-7 817 0.5498 182
Dapple-grey 2/0.7 13.564 2/0-7 1005 0.4361 210
Thoroughbred 2/0-19 13.691 2/0-7 1007 0.4361 210
Dobbin 3/0-7 14.834 3/0-7 1238 0.3458 242
Trotter 3/0-19 14.986 3/0-7 1243 0.3458 242
Pony 4/0-7 16.307 4/0-7 1534 0.2742 279
Walking 4/0-19 16.459 4/0-7 1539 0.2742 279
Bare Neutral: ACSR
Morochuca 6-1 6.401 6-6/1 229 2.2126 78
Chola 6-7 6.960 6-6/1 237 2.2126 78
Morgan 4-1 7.468 4-6/1 344 1.3896 103
Hackney 4-7 8.179 4-6/1 356 1.3896 103
Palomino 2-7 9.703 2-6/1 557 0.8749 136
Albino 1-19 11.481 1-6/1 699 0.6934 158
Standardbred 1/0-7 12.395 1/0-6/1 859 0.5498 182
Costena 1/0-19 12.522 1/0-6/1 862 0.5498 182
Chicoteagues 2/0.7 13.564 2/0-6/1 1060 0.4361 210
Grullo 2/0-19 13.691 2/0-6/1 1063 0.4361 210
Mare 3/0-7 14.834 3/0-6/1 1306 0.3458 242
Suffolk 3/0-19 14.986 3/0-6/1 1313 0.3458 242
Stallion 4/0-7 16.307 4/0-6/1 1622 0.2742 279
Appaloosa 4/0-19 16.459 4/0-6/1 1627 0.2742 279

MV ABC Cable (IEC 60502-2)

IEC 60502 6.35/11 KV ABC FOR OVERHEAD DISTRIBUTION LINES
NUMBER OF CORES X NOMINAL CROSS SECTION PHASE CONDUCTOR MESSENGER SUSPENSION UNIT CONTINUOUS CURRENT RATING AT 300C AMBIENT TEMP
STRANDING NOMINAL SECTIONAL AREA MAXIMUM CONDUCTOR RESISTANCE STRANDING NOMINAL SECTIONAL AREA BREAKING LOAD
NO.×MM² NO.×MM MM² Ω/KM NO.×MM MM² KN   A
3X50 + 1X25 19/1.78 50 0.641 7/2.14 25 60 116
3X70 + 1X50 19/2.14 70 0.443 7/3.15 50 62 210
3X95+ 1X50 19/2.52 95 0.32 7/3.0 50 60 173
3X185+1X120 37/2.52 185 0.164 7/4.67 120 150 259
3X150 +1X50 37/2.25 150 0.206 7/3.15 50 62 365
3X240 +1X50 61/2.25 240 0.125 7/3.15 50 62 500

Other cross-sections can be offered upon request.

IEC 60502 19/33 KV ABC FOR OVERHEAD DISTRIBUTION LINES
NUMBER OF CORES X NOMINAL CROSS SECTION PHASE CONDUCTOR MESSENGER SUSPENSION UNIT CONTINUOUS CURRENT RATING AT 300C AMBIENT TEMP
STRANDING NOMINAL SECTIONAL AREA MAXIMUM CONDUCTOR RESISTANCE STRANDING NOMINAL SECTIONAL AREA BREAKING LOAD
NO.×MM² NO.×MM MM² Ω/KM NO.×MM MM² KN   A
3X50 + 1X25 19/1.78 50 0.641 7/2.14 25 60 165
3X150+ 1X50 37/2.25 150 0.206 7/3.0 50 60 315
3X185+1X70 37/2.52 185 0.164 7/3.57 70 91 355
3X70 +1X50 19/2.14 70 0.443 7/3.15 50 62 250
3X150 +1X50 37/2.25 150 0.206 7/3.15 50 62 370

Other cross-sections can be offered upon request.

AS/NZS 3599 PART 1 6.35/11 KV AL/XLPE /HDPE NON-SCREENED CABLES

NUMBER OF CORES X NOMINAL CROSS SECTION PHASE CONDUCTOR MESSENGER SUSPENSION UNIT NOMINAL SECTIONAL AREA BREAKING LOAD
DIAMETER OF CONDUCTOR THICKNESS OF INSULATION THICKNESS OF INSULATION SCREEN THICKNESS OF SHEATH STRANDING
NO.×MM² MM MM MM MM NO.×MM MM² KN
3×35 6.9 3.4 0.8 1.2 7/4.75 52.4 1370
3×50 8.1 3.4 0.8 1.2 7/4.75 54.6 1530
3×70 9.7 3.4 0.8 1.2 7/4.75 57.8 1790
3×95 11.4 3.4 0.8 1.2 7/4.75 61.3 2100
3×120 12.8 3.4 0.8 1.2 19/3.50 67.3 2540
3×150 14.2 3.4 0.8 1.2 19/3.50 70.1 2840
3×185 15.7 3.4 0.8 1.2 19/3.50 73.1 3190

Other cross-sections can be offered upon request.

AS/NZS 3599 PART 1 6.35/11 KV AL/XLPE /CWS/HDPE SCREENED CABLES

NUMBER OF CORES X NOMINAL CROSS SECTION DIAMETER OF CONDUCTOR THICKNESS OF INSULATION THICKNESS OF INSULATION SCREEN COPPER WIRE SCREEN STRANDING THICKNESS OF SHEATH GALVANIZED STEEL WIRE STRANDING NOMINAL SECTIONAL AREA BREAKING LOAD
NO.×MM² MM MM MM NO.×MM MM NO.×MM MM² KN
Light Duty Screen
3×35 6.9 3.4 0.8 25/0.85 1.8 7/2.00 54.1 1820
3×35 6.9 3.4 0.8 25/0.85 1.8 19/2.00 58.1 2130
3×50 8.1 3.4 0.8 25/0.85 1.8 19/2.00 60.4 2300
3×70 9.7 3.4 0.8 25/0.85 1.8 19/2.00 63.6 2570
3×95 11.4 3.4 0.8 25/0.85 1.8 19/2.00 67.0 2900
3×120 12.8 3.4 0.8 25/0.85 1.8 19/2.00 69.8 3190
3×150 14.2 3.4 0.8 25/0.85 1.9 19/2.00 73.0 3530
3×185 15.7 3.4 0.8 25/0.85 1.9 19/2.00 76.0 3890
Heavy Duty Screen
3×35 6.9 3.4 0.8 40/0.85 1.8 7/2.00 54.1 2050
3×35 6.9 3.4 0.8 40/0.85 1.8 19/2.00 58.1 2360
3×50 8.1 3.4 0.8 23/1.35 1.8 19/2.00 62.4 2820
3×70 9.7 3.4 0.8 32/1.35 1.8 19/2.00 65.6 3440
3×95 11.4 3.4 0.8 39/1.35 1.8 19/2.00 69.0 4030
3×120 12.8 3.4 0.8 39/1.35 1.8 19/2.00 71.8 4320
3×150 14.2 3.4 0.8 39/1.35 1.9 19/2.00 75.0 4670
3×185 15.7 3.4 0.8 39/1.35 1.9 19/2.00 78.0 5020

Other cross-sections can be offered upon request.

AS/NZS 3599 PART 1 12.7/22 KV AL/XLPE /HDPE NON-SCREENED CABLES

NUMBER OF CORES X NOMINAL CROSS SECTION PHASE CONDUCTOR MESSENGER SUSPENSION UNIT NOMINAL SECTIONAL AREA BREAKING LOAD
DIAMETER OF CONDUCTOR THICKNESS OF INSULATION THICKNESS OF INSULATION SCREEN THICKNESS OF SHEATH STRANDING
NO.×MM² MM MM MM MM NO.×MM MM² KN
3×35 6.9 5.5 0.8 1.2 7/4.75 61.0 1780
3×50 8.1 5.5 0.8 1.2 7/4.75 63.3 1970
3×70 9.7 5.5 0.8 1.2 7/4.75 66.5 2260
3×95 11.4 5.5 0.8 1.2 7/4.75 69.9 2600
3×120 12.8 5.5 0.8 1.2 19/3.50 75.9 3070
3×150 14.2 5.5 0.8 1.2 19/3.50 78.7 3390
3×185 15.7 5.5 0.8 1.2 19/3.50 81.7 3760

Other cross-sections can be offered upon request.

AS/NZS 3599 PART 1 12.7/22 KV AL/XLPE /CWS/HDPE SCREENED CABLES

NUMBER OF CORES X NOMINAL CROSS SECTION DIAMETER OF CONDUCTOR THICKNESS OF INSULATION THICKNESS OF INSULATION SCREEN COPPER WIRE SCREEN STRANDING THICKNESS OF SHEATH GALVANIZED STEEL WIRE STRANDING NOMINAL SECTIONAL AREA BREAKING LOAD
NO.×MM² MM MM MM NO.×MM MM NO.×MM MM² KN
Light Duty Screen
3×35 6.9 5.5 0.8 25/0.85 1.8 7/2.00 62.7 2280
3×35 6.9 5.5 0.8 25/0.85 1.8 19/2.00 66.7 2580
3×50 8.1 5.5 0.8 25/0.85 1.8 19/2.00 69.0 2780
3×70 9.7 5.5 0.8 25/0.85 1.9 19/2.00 72.6 3110
3×95 11.4 5.5 0.8 25/0.85 1.9 19/2.00 76.0 3460
3×120 12.8 5.5 0.8 25/0.85 2.0 19/2.00 79.2 3810
3×150 14.2 5.5 1.0 25/0.85 2.0 19/2.00 82.8 4230
3×185 15.7 5.5 1.0 25/0.85 2.1 19/2.00 86.2 4650
Heavy Duty Screen
3×35 6.9 5.5 0.8 40/0.85 1.8 7/2.00 62.7 2510
3×35 6.9 5.5 0.8 40/0.85 1.8 19/2.00 66.7 2810
3×50 8.1 5.5 0.8 23/1.35 1.8 19/2.00 71.0 3300
3×70 9.7 5.5 0.8 32/1.35 1.9 19/2.00 74.6 3970
3×95 11.4 5.5 0.8 39/1.35 1.9 19/2.00 78.0 4600
3×120 12.8 5.5 0.8 39/1.35 2.0 19/2.00 81.2 4950
3×150 14.2 5.5 1.0 39/1.35 2.0 19/2.00 84.8 5360
3×185 15.7 5.5 1.0 39/1.35 2.1 19/2.00 88.2 5790

Certificate Display

Factory Tour

Why choose us?

Professional

Experienced in global cable exports, our team understands international standards and provides responsive multilingual support for customers worldwide.

Professional

Experienced in global cable exports, our team understands international standards and provides responsive multilingual support for customers worldwide.
Read More

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.

Fast Delivery

Our factory has sufficient capacity, and we can generally complete production for most orders within 2 ~ 3 weeks, maximum 1 ~ 1.5 months.
Read More

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.

Good Price

Relying on robust Chinese cable manufacturing supply chain enables us to maintain low costs, to offer competitive cable products to our customers.
Read More

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.

High Quality

We have complete cable type tests and a quality inspection process, supporting customer or third-party quality acceptance to ensure we deliver high-quality products.
Read More

FAQs

Who are we?

Uni Cable Group is a trusted supplier of overhead line products, power cables and cable manufacturing materials based in China. Backed by experienced manufacturing resources and a professional export team, we serve utilities, EPC contractors, distributors and cable manufacturers worldwide with reliable supply, technical support and OEM solutions.

Always a pre-production sample before mass production; Always have strict control of the quality from the raw material to finished products according to ISO9001 QC system before shipment.

House eletric wire, Anti-aging wire, Solar PV cable, Control cable, Shielded computer cable, Low/Medium/High Voltage power cable, Aluminum alloy cable, Aerial insulated cable, Steel core aluminum standed wire, LSZH cable, Fireproof cable, Wind power cable, EV charging cable, Energy storage cable, Mining cable, etc.

We are committed to providing reliable products, competitive pricing and responsive service for customers worldwide. With an integrated manufacturing network, strict quality control and one-stop supply capabilities, we simplify global cable sourcing and create long-term value for our partners.

Accepted Delivery Terms: FOB,CFR,EXW,FAS,DDP； Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash; Language Spoken:English,Chinese,Japanese,German,Russian

Yes, we have production line for packing box and cartons. we can make it according to your special requirement. If you are interested in our goods , please kindly send an inquiry to us !

Contact us to get your quote!

  • 24-hour online service
  • Own factory processing

Products

Related Products

FOLLOW US :

Facebook Twitter Youtube

Uni Cable Group provides a comprehensive range of overhead conductors, power cables and cable manufacturing materials, supported by experienced manufacturing resources and strict quality control to meet international project requirements.

our products

NEED HELP

Contact Info

Inquiry

WhatsApp

© Copyright 2025 by Uni Cable Group All Rights Reserved.

Privacy Policy

home

profile

our range

contact us

call us

Contact Us Right Now

Fill out the form to download the brochure
