N2XS(F)2Y Cable
Conductor: stranded (RM) bare copper wire
Insulation: XLPE
Share:
Product Description
N2XS(F)2Y Cable | Single-Core XLPE Insulated Cable with PE Outer Sheath, longitudinally watertight (6/10 kV, 12/20 kV, 18/30 kV)
N2XS(F)2Y Cable Application
To be laid directly in ground, in water, outdoors, indoors and in cable ducts.

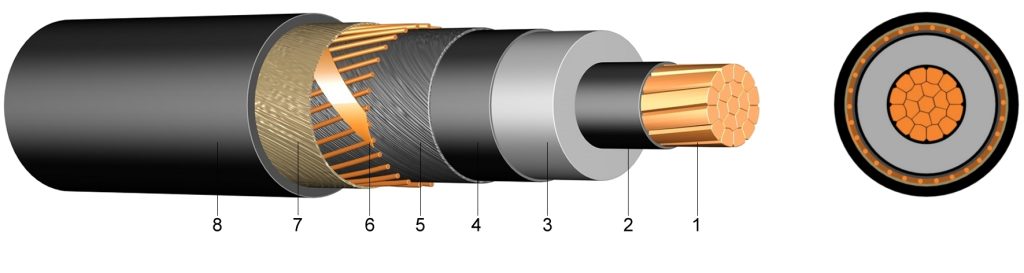

N2XS(F)2Y Cable Construction
1…..stranded (RM) bare copper wire
2…..inner layer of semi-conducting material
3…..core insullation of cross-linked polyethylene
4…..outer layer of semi-conducting material
5…..swellable tape
6…..screen of copper wires
7…..waterproofing tape
8…..outer sheath of polyethylene (PE), black
N2XS(F)2Y Cable Standards
DIN VDE 0276-620 HD 620 S1 : 1995 DIN EN 60228 class 2 (construction)
N2XS(F)2Y Cable Technical data
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| 12 / 20 kV | [kV] | 42 / 5 min. | |
| 18 / 30 kV | [kV] | 63 / 5 min. | |
| Temperature range | in motion | -20°C till +90°C | |
| fixed | -20°C till +90°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
N2XS(F)2Y Cable Specifications
| Number of cores and nominal cross section mm² | Copper figure kg/km | Overall diameter appr. mm | Overall diameter max. value appr. mm | Weight appr. kg / km | Current carrying capacity ground A* | Current carrying capacity air A* |
| 6 / 10 kV | ||||||
| 1 x 35 RM/16 | 518,40 | 23 | 28 | 820 | 187 | 197 |
| 1 x 50 RM/16 | 662,40 | 24 | 29 | 960 | 220 | 236 |
| 1 x 70 RM/16 | 854,40 | 26 | 31 | 1.200 | 268 | 294 |
| 1 x 95 RM/16 | 1.094,40 | 27 | 32 | 1.450 | 320 | 358 |
| 1 x 120 RM/16 | 1.334,40 | 29 | 34 | 1.700 | 363 | 413 |
| 1 x 150 RM/25 | 1.723,20 | 30 | 35 | 2.000 | 405 | 468 |
| 1 x 185 RM/25 | 2.059,20 | 32 | 37 | 2.350 | 456 | 535 |
| 1 x 240 RM/25 | 2.587,20 | 34 | 39 | 2.900 | 526 | 631 |
| 1 x 300 RM/25 | 3.163,20 | 36 | 41 | 3.550 | 591 | 722 |
| 1 x 400 RM/35 | 4.233,60 | 40 | 45 | 4.500 | 662 | 827 |
| 1 x 500 RM/35 | 5.193,60 | 43 | 48 | 5.550 | 744 | 949 |
| Number of cores and nominal cross section mm² | Copper figure kg/km | Overall diameter appr. mm | Overall diameter max. value appr. mm | Weight appr. kg / km | Current carrying capacity ground A* | Current carrying capacity air A* |
| 12 / 20 kV | ||||||
| 1 x 50 RM/16 | 662,40 | 28 | 33 | 1.150 | 222 | 239 |
| 1 x 70 RM/16 | 854,40 | 30 | 35 | 1.350 | 271 | 297 |
| 1 x 95 RM/16 | 1.094,40 | 31 | 36 | 1.600 | 232 | 361 |
| 1 x 120 RM/16 | 1.334,40 | 33 | 38 | 1.850 | 367 | 416 |
| 1 x 150 RM/25 | 1.723,20 | 34 | 39 | 2.250 | 409 | 470 |
| 1 x 185 RM/25 | 2.059,20 | 36 | 41 | 2.600 | 461 | 538 |
| 1 x 240 RM/25 | 2.587,20 | 39 | 44 | 3.150 | 532 | 634 |
| 1 x 300 RM/25 | 3.163,20 | 41 | 46 | 3.800 | 599 | 724 |
| 1 x 400 RM/35 | 4.233,60 | 44 | 49 | 4.750 | 671 | 829 |
| 1 x 500 RM/25 | 5.193,60 | 47 | 52 | 6.450 | 750 | 927 |
| Number of cores and nominal cross section mm² | Copper figure kg/km | Overall diameter appr. mm | Overall diameter max. value appr. mm | Weight appr. kg / km | Current carrying capacity ground A* | Current carrying capacity air A* |
| 18 / 30 kV | ||||||
| 1 x 50 RM/16 | 662,40 | 33 | 38 | 1.350 | 225 | 241 |
| 1 x 95 RM/16 | 1.094,40 | 36 | 41 | 1.900 | 327 | 363 |
| 1 x 120 RM/16 | 1.334,40 | 38 | 43 | 2.200 | 371 | 418 |
| 1 x 150 RM/25 | 1.723,20 | 39 | 44 | 2.550 | 414 | 472 |
| 1 x 185 RM/25 | 2.059,20 | 41 | 46 | 2.950 | 466 | 539 |
| 1 x 240 RM/25 | 2.587,20 | 43 | 48 | 3.500 | 539 | 635 |
| 1 x 300 RM/25 | 3.163,20 | 46 | 51 | 4.150 | 606 | 725 |
| 1 x 400 RM/25 | 4.233,60 | 49 | 54 | 5.050 | 680 | 831 |
| 1 x 500 RM/35 | 5.193,60 | 52 | 57 | 6.200 | 765 | 953 |
