NA2XS2Y Cable | XLPE Insulated Single-Core Cable with PE Outer Sheath (6/10 kV, 12/20 kV, 18/30 kV)

NA2XS2Y Cable Application

To be laid directly in ground, outdoors, indoors and in cable ducts.

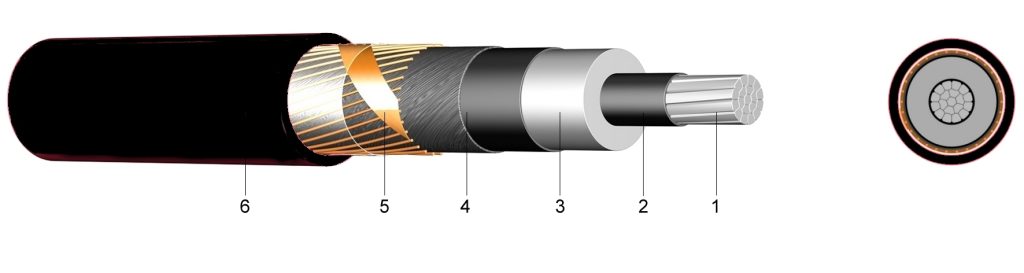

NA2XS2Y Cable Construction

1…..stranded (RM) aluminium wires
2…..inner layer of semi-conducting material
3…..core insulation of cross-linked polyethylene
4…..outer layer of semi-conducting material
5…..screen of copper wires
6…..outer sheath of polyethylene (PE), black

NA2XS2Y Cable Standards

DIN VDE 0276-620 HD 620 S1: 1995 DIN EN 60228 class 2 (construction)

NA2XS2Y Cable Technical data
Test voltage   6 / 10 kV [kV] 21 / 5 min.
12 / 20 kV [kV] 42 / 5 min.
18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion -20°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
NA2XS2Y Cable Specifications
Number of cores and nominal cross section mm² Aluminium figure kg/km Copper figure kg/km Overall diameter appr. mm Overall diameter max. value appr. mm Weight appr. kg / km Current carrying capacity ground A* Current carrying capacity air A*
6 / 10 kV
1 x   35 RM/16 103 182,40 23 28 600 145 153
1 x   50 RM/16 147 182,40 24 29 670 171 183
1 x   70 RM/16 206 182,40 26 31 770 208 228
1 x   95 RM/16 279 182,40 27 32 880 248 278
1 x 120 RM/16 353 182,40 29 34 950 283 321
1 x 150 RM/25 441 283,20 30 35 1.150 315 364
1 x 185 RM/25 544 283,20 32 37 1.250 357 418
1 x 240 RM/25 706 283,20 34 39 1.500 413 494
1 x 300 RM/25 882 283,20 36 41 1.700 466 568
1 x 400 RM/35 1.176 393,60 40 45 2.100 529 660
Number of cores and nominal cross section mm² Aluminium figure kg/km Copper figure kg/km Overall diameter appr. mm Overall diameter max. value appr. mm Weight appr. kg / km Current carrying capacity ground A* Current carrying capacity air A*
12 / 20 kV
1 x   50 RM/16 147 182,40 28 33 820 172 185
1 x   70 RM/16 206 182,40 30 35 930 210 231
1 x   95 RM/16 279 182,40 31 36 1.050 251 280
1 x 120 RM/16 353 182,40 33 38 1.150 285 323
1 x 150 RM/25 441 283,20 34 39 1.350 319 366
1 x 185 RM/25 544 283,20 36 41 1.500 361 420
1 x 240 RM/25 706 283,20 39 44 1.750 417 496
1 x 300 RM/25 882 283,20 41 46 2.000 471 569
1 x 400 RM/35 1.176 393,60 44 49 2.350 535 660
Number of cores and nominal cross section mm² Aluminium figure kg/km Copper figure kg/km Overall diameter appr. mm Overall diameter max. value appr. mm Weight appr. kg / km Current carrying capacity ground A* Current carrying capacity air A*
18 / 30 kV
1 x   50 RM/16 147 182,40 33 38 1.100 174 187
1 x   70 RM/16 206 182,40 35 40 1.200 213 232
1 x   95 RM/16 279 182,40 36 41 1.350 254 282
1 x 120 RM/16 353 182,40 38 43 1.450 289 325
1 x 150 RM/25 441 283,20 39 44 1.700 322 367
1 x 185 RM/25 544 283,20 41 46 1.850 364 421
1 x 240 RM/25 706 283,20 43 48 2.050 422 496
1 x 300 RM/25 882 283,20 46 51 2.350 476 568
1 x 400 RM/35 1.176 393,60 49 54 2.800 541 650
