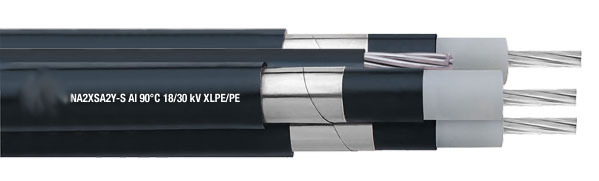

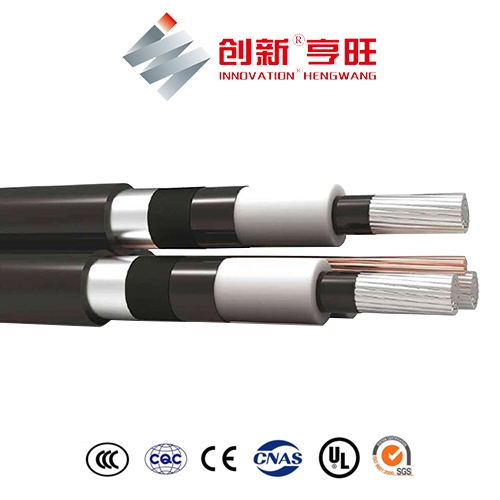

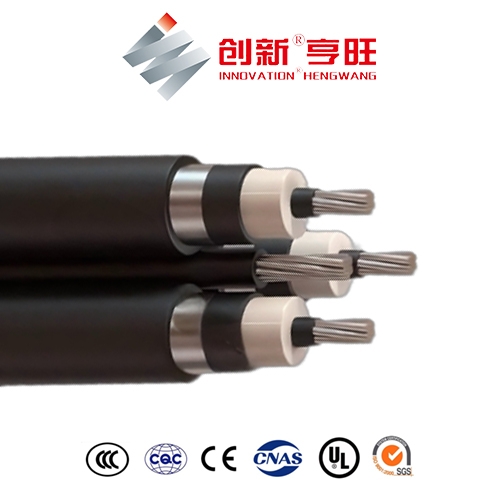

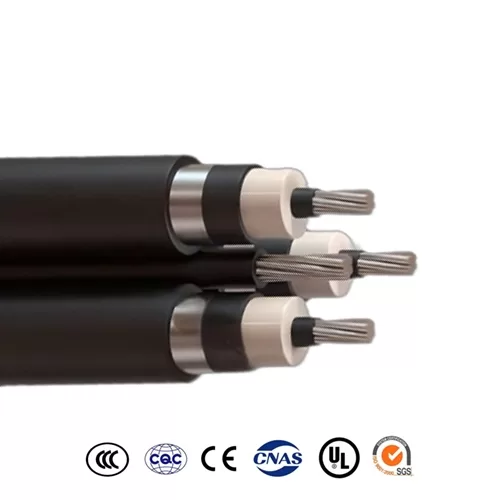

NA2XSA2Y-S Cable

Aluminum conductor Tripolar Power Cable

NA2XSA2Y-S Cable Application

NA2XSA2Y-S Cable Aerial distribution of energy in medium tension. Transformer feeders,power plants, industrial and maneuvering facilities, in places where can not run the laying of underground networks, mining facilities, areas urban with trees or with little space.

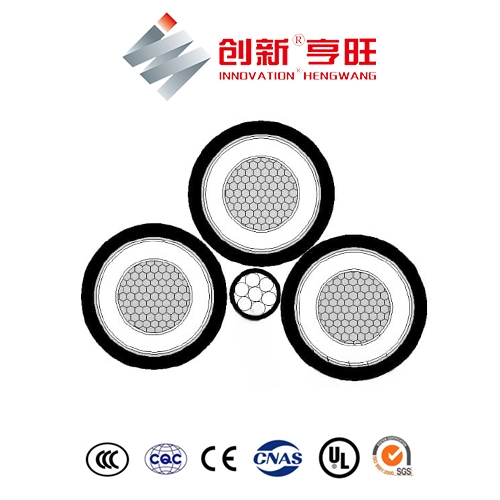

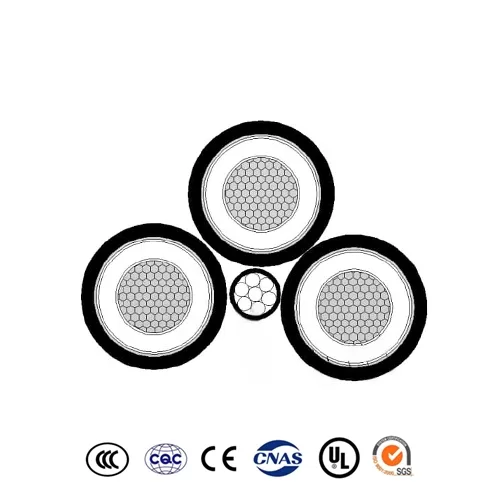

NA2XSA2Y-S Cable Construction

**Conductor:** Stranded compacted circular aluminium conductor to IEC60228 class 2

Conductor Screen: Extruded semi-conductive compound

Insulation: XLPE (cross-linked polyethylene) rated at 90°C

Insulation Screen: Extruded semi-conductive compound

Metallic Screen: Aluminium tape.

Sheath: Linear low density polyethylene LLDPE-UV.

Messenger conductor: Stranded galvanized steel wire.

Messenger insulation: Linear low density polyethylene LLDPE-UV.

NA2XSA2Y-S Cable Characteristics

The product is suitable for power transmission and distribution lines with rated power frequency voltage 6kV～30 kV.

Rated voltages U0/U(Um): 6/10(12) kV, 8.7/15(17.5) kV, 12/20(24) kV, 18/30(36) kV;;
Note: The above rated voltages are equivalent to 6.35/11(12) kV, 8.7/15(17.5) kV, 12.7/22(24) kV, 19/33(36) kV;
U0 ：Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U ：Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um ：Maximum value of the highest system voltage between phase conductors for which the cable is suitable.
The ambient temperature for installation: ≥0℃
Maximum conductor temperature in normal operation:≤90℃
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃
Permissible minimum bending radius: 15 x OD
Note : OD=Overall Diameter of Cable

6/10kV NA2XSA2Y-S Cables Specifications

Conductor			Approx. OD. mm	Messenger Conductor (EHS)			Approx. Weight kg/km
Number of Cores x Nominal Cross Section No.×mm²	No.of wires (Min) No.	Nom. Diameter of Conductor mm	Approx. OD. mm	Stranding No.×mm	Diameter Messenger Conductor mm	Minimum breaking load kN	Approx. Weight kg/km
3X1X25	6	5.9	42.4	7×2.64	7.92	49.82	1562
3X1X35	6	6.9	44.6	7×2.64	7.92	49.82	1714
3X1X50	6	8.1	47.2	7×2.64	7.92	49.82	1908
3X1X70	12	9.8	50.8	7×2.64	7.92	49.82	2200
3X1X95	15	11.4	54.3	7×3.68	11.04	92.82	2855
3X1X120	15	12.8	57.3	7×3.68	11.04	92.82	3153
3X1X150	15	14.4	61.2	7×3.68	11.04	92.82	3523
3X1X185	30	16	64.6	7×3.68	11.04	92.82	3933
3X1X240	30	18.4	70.2	7×3.68	11.04	92.82	4611

Product Parameters for 8.7/15kV NA2XSA2Y-S Cables

Conductor			Approx. OD. mm	Messenger Conductor (EHS)			Approx. Weight kg/km
Number of Cores x Nominal Cross Section No.×mm²	No.of wires (Min) No.	Nom. Diameter of Conductor mm	Approx. OD. mm	Stranding No.×mm	Diameter Messenger Conductor mm	Minimum breaking load kN	Approx. Weight kg/km
3X1X25	6	5.9	47.2	7×2.64	7.92	49.82	1799
3X1X35	6	6.9	49.3	7×2.64	7.92	49.82	1962
3X1X50	6	8.1	51.9	7×2.64	7.92	49.82	2168
3X1X70	12	9.8	55.6	7×2.64	7.92	49.82	2477
3X1X95	15	11.4	59	7×3.68	11.04	92.82	3149
3X1X120	15	12.8	62.5	7×3.68	11.04	92.82	3490
3X1X150	15	14.4	65.9	7×3.68	11.04	92.82	3851
3X1X185	30	16	69.8	7×3.68	11.04	92.82	4308
3X1X240	30	18.4	75.4	7×3.68	11.04	92.82	5016

Product Parameters for 12/20kV NA2XSA2Y-S Cables

Conductor			Approx. OD. mm	Messenger Conductor (EHS)			Approx. Weight kg/km
Number of Cores x Nominal Cross Section No.×mm²	No.of wires (Min) No.	Nom. Diameter of Conductor mm	Approx. OD. mm	Stranding No.×mm	Diameter Messenger Conductor mm	Minimum breaking load kN	Approx. Weight kg/km
3X1X35	6	6.9	54.1	7×3.00	9	64.36	2337
3X1X50	6	8.1	56.7	7×3.00	9	64.36	2555
3X1X70	12	9.8	60.3	7×3.00	9	64.36	2883
3X1X95	15	11.4	64.2	7×3.00	9	64.36	3277
3X1X120	15	12.8	67.6	7×3.00	9	64.36	3636
3X1X150	15	14.4	71.1	7×3.00	9	64.36	4015
3X1X185	30	16	75	7×3.00	9	64.36	4493
3X1X240	30	18.4	80.1	7×3.00	9	64.36	5196

Product Parameters for 18/30kV NA2XSA2Y-S Cables

Conductor			Approx. OD. mm	Messenger Conductor (EHS)			Approx. Weight kg/km
Number of Cores x Nominal Cross Section No.×mm²	No.of wires (Min) No.	Nom. Diameter of Conductor mm	Approx. OD. mm	Stranding No.×mm	Diameter Messenger Conductor mm	Minimum breaking load kN	Approx. Weight kg/km
3X1X35	6	6.9	54.1	7×3.00	9	64.36	2337
3X1X50	6	8.1	67.9	7×2.64	7.92	49.82	3208
3X1X70	12	9.8	71.5	7×2.64	7.92	49.82	3577
3X1X95	15	11.4	75.4	7×3.68	11.04	92.82	4339
3X1X120	15	12.8	78.4	7×3.68	11.04	92.82	4703
3X1X150	15	14.4	82.3	19×2.86	14.29	149.9	5571
3X1X185	30	16	86.2	19×2.86	14.29	149.9	6093
3X1X240	30	18.4	91.3	19×2.86	14.29	149.9	6854
