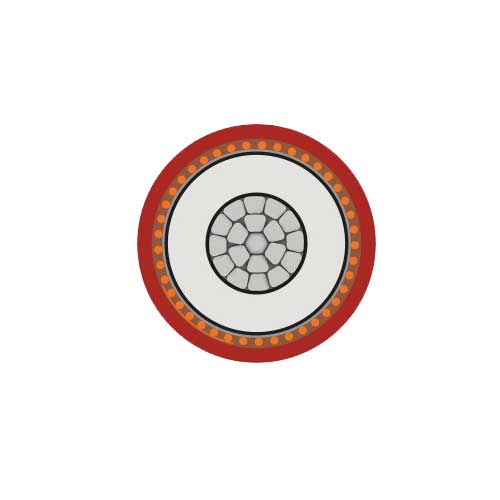

NA2XSY Cable - Image 2

NA2XSY Cable

Category: Tag:

Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY

Quality Certification (1)
Quality Certification (2)
Quality Certification (3)
Quality Certification (4)
Quality Certification (5)
Quality Certification (6)
Quality Certification (7)
Quality Certification (8)
Quality Certification (9)
Quality Certification (10)
Quality Certification (11)
Quality Certification (12)
Data sheet
Send Email

Share:

Description
Certificate
Factory Tour
Advantage
FAQs
Form

Product Description

NA2XSY Cable 6/10 kV 12/20 kV 18/30 kV| XLPE Insulated Single-Core Cable with PVC Outer Sheath

NA2XSY Cable Application

To be laid directly in ground, outdoors, indoors and in cable ducts.

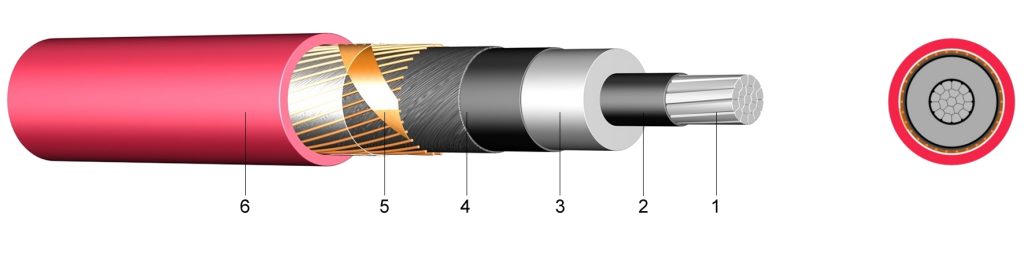

NA2XSY Cable Construction

1…..stranded (RM) aluminium wires
2…..inner layer of semi-conducting material
3…..core insulation of cross-linked polyethylene
4…..outer layer of semi-conducting material
5…..screen of copper wires
6…..outer sheath of polyvinylchloride (PVC), red

NA2XSY Cable Standards

DIN VDE0276-620 HD 620 S1: 1995 DIN EN 60228 class 2 (construction)

NA2XSY Cable Technical data:
Test voltage   6 / 10 kV [kV] 21 / 5 min.
12 / 20 kV [kV] 42 / 5 min.
18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion –  5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2
NA2XSY Cable Specifications
Number of cores and nominal cross section mm² Aluminium figure kg/km Copper figure kg/km Overall diameter appr. mm Overall diameter max. value appr. mm Weight appr. kg / km Current carrying capacity ground A* Current carrying capacity air A*
6 / 10 kV
1 x   35 RM/16 103 182,40 23 28 700 145 153
1 x   50 RM/16 147 182,40 24 29 750 171 183
1 x   70 RM/16 206 182,40 26 31 850 208 228
1 x   95 RM/16 279 182,40 27 32 950 248 278
1 x 120 RM/16 353 182,40 29 34 1.050 283 321
1 x 150 RM/25 441 283,20 30 35 1.300 315 364
1 x 185 RM/25 544 283,20 32 37 1.400 357 418
1 x 240 RM/25 706 283,20 34 39 1.650 413 494
1 x 300 RM/25 882 283,20 36 40 1.850 466 568
1 x 400 RM/35 1.176 393,60 40 45 2.300 529 660
Number of cores and nominal cross section mm² Aluminium figure kg/km Copper figure kg/km Overall diameter appr. mm Overall diameter max. value appr. mm Weight appr. kg / km Current carrying capacity ground A* Current carrying capacity air A*
12 / 20 kV
1 x   50 RM/16 147 182,40 28 33 950 172 185
1 x   70 RM/16 206 182,40 30 35 1.050 210 231
1 x   95 RM/16 279 182,40 31 36 1.150 251 280
1 x 120 RM/16 353 182,40 33 38 1.300 285 323
1 x 150 RM/25 441 283,20 34 39 1.500 319 366
1 x 185 RM/25 544 283,20 36 41 1.650 361 420
1 x 240 RM/25 706 283,20 39 44 1.850 417 496
1 x 300 RM/25 882 283,20 41 46 2.100 471 569
1 x 400 RM/35 1.176 393,60 44 49 2.550 535 660
Number of cores and nominal cross section mm² Aluminium figure kg/km Copper figure kg/km Overall diameter appr. mm Overall diameter max. value appr. mm Weight appr. kg / km Current carrying capacity ground A* Current carrying capacity air A*
18 / 30 kV
1 x   50 RM/16 147 182,40 36 41 1.190 175 187
1 x   70 RM/16 206 182,40 37 42 1.315 214 232
1 x   95 RM/16 279 182,40 39 43 1.450 256 281
1 x 120 RM/16 353 182,40 40 45 1.580 290 323
1 x 150 RM/25 441 283,20 42 47 1.800 324 365
1 x 185 RM/25 544 283,20 44 49 1.965 366 418
1 x 240 RM/25 706 283,20 46 51 2.230 426 494
1 x 300 RM/25 882 283,20 49 53 2.470 479 564
1 x 400 RM/35 1.176 393,60 51 56 2.920 545 654
