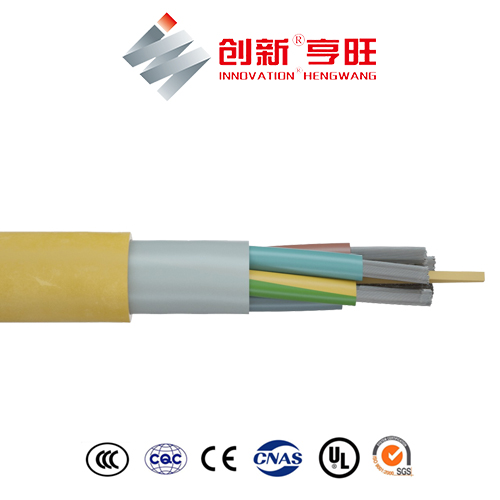

Rubber Sheathed Cable for High Mechanical Stress
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
Rubber Sheathed Cable for High Mechanical Stress
Rubber Sheathed Cable Application
These cables are suitable for extreme mechanical stress in dry and humid locations and outdoor use for connections of heavy equipment. For mines and industrial use.

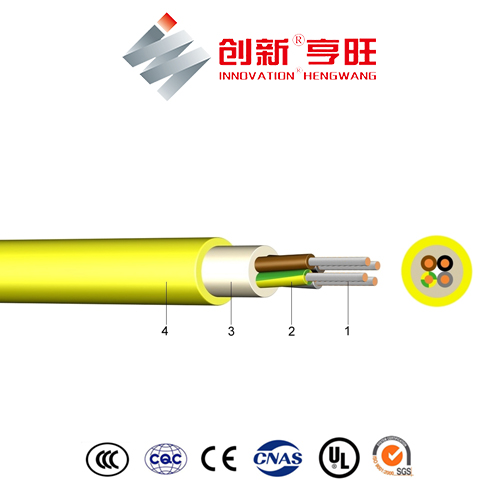

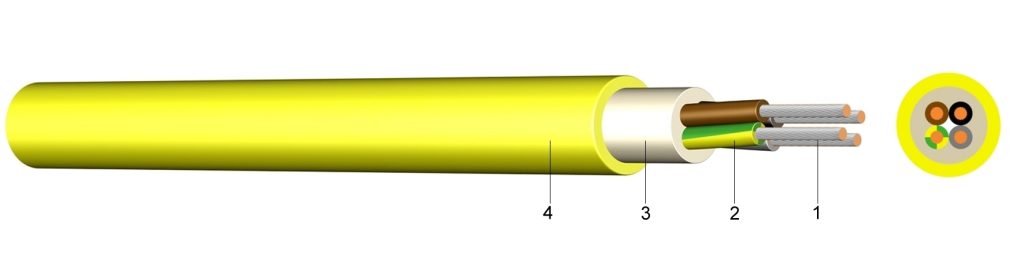

Rubber Sheathed Cable Construction
1…..fine-stranded tinned copper
2…..EPR rubber insulation (ethylen-propylen polymer)
3…..rubber inner sheath
4…..outer sheath of polychloroprene (CR), yellow, abrasion and oil resistant,flame retardant
Rubber Sheathed Cable Standards
DIN VDE 0250-812 DIN EN 60228 class 5 (construction) HD 308 S2 (core identification)
Rubber Sheathed Cable Technical data:
| Nominal voltage Uo/U | [V] | 600 / 1000 Volt | |
| Test voltage | [V]AC | 4000 | |
| Temperature range | in motion | -25°C till +80°C | |
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | one time / fixed | x diameter | 4 |
| Bending radius | in motion | x diameter | 10 |
| Oil-resistant | standard | EN 60811-2-1 | |
| Flammability | standard | EN 60332-1-2 |
Rubber Sheathed Cable Specifications
| Number of cores and nominal cross section mm² | Copper figure kg/km | Cond. construction (app.value)mm | Overall diameter appr.mm | Weight appr. kg / km |
| 1 x 25 | 240,00 | 200 x 0,41 | 12,9 | 350 |
| 1 x 35 | 336,00 | 280 x 0,41 | 13,6 | 446 |
| 1 x 50 | 480,00 | 400 x 0,41 | 16,0 | 618 |
| 1 x 70 | 672,00 | 356 x 0,51 | 18,2 | 838 |
| 1 x 95 | 912,00 | 485 x 0,51 | 20,7 | 1.082 |
| 1 x 120 | 1.152,00 | 614 x 0,51 | 22,4 | 1.350 |
| 1 x 150 | 1.440,00 | 765 x 0,51 | 24,6 | 1.660 |
| 1 x 185 | 1.776,00 | 944 x 0,51 | 28,3 | 2.067 |
| 1 x 240 | 2.304,00 | 1225 x 0,51 | 30,2 | 2.621 |
| 3 x 1,5 | 43,20 | 30 x 0,26 | 11,5 | 184 |
| 3 x 2,5 | 72,00 | 50 x 0,26 | 12,9 | 245 |
| 3 x 70/35 | 2.352,00 | 356 x 0,51 | 42,2 | 3.775 |
| 3 x 95/50 | 3.216,00 | 485 x 0,51 | 50,2 | 5.116 |
| 3 x 120/70 | 4.128,00 | 614 x 0,50 | 55,0 | 6.388 |
| 4 x 1,5 | 57,60 | 30 x 0,26 | 12,2 | 213 |
| 4 x 2,5 | 96,00 | 50 x 0,26 | 15,1 | 328 |
| Number of cores and nominal cross section mm² | Copper figure kg/km | Cond. construction (appr. value) mm | Overall diameter appr. mm | Weight appr. kg / km |
| 4 x 4 | 153,60 | 56 x 0,31 | 16,7 | 423 |
| 4 x 6 | 230,40 | 84 x 0,31 | 18,1 | 530 |
| 4 x 10 | 384,00 | 80 x 0,41 | 22,3 | 832 |
| 4 x 16 | 614,40 | 128 x 0,41 | 26,3 | 1.198 |
| 4 x 25 | 960,00 | 200 x 0,41 | 31,5 | 1.771 |
| 4 x 35 | 1.344,00 | 280 x 0,41 | 33,2 | 2.196 |
| 4 x 50 | 1.920,00 | 400 x 0,41 | 40,4 | 3.160 |
| 4 x 70 | 2.688,00 | 356 x 0,51 | 44,8 | 4.115 |
| 4 x 95 | 3.648,00 | 485 x 0,51 | 52,6 | 5.516 |
| 4 x 120 | 4.608,00 | 614 x 0,51 | 57,0 | 6.815 |
| 5 x 1,5 | 72,00 | 30 x 0,26 | 13,1 | 249 |
| 5 x 2,5 | 120,00 | 50 x 0,26 | 16,1 | 384 |
| 5 x 4 | 192,00 | 56 x 0,31 | 17,9 | 501 |
| 5 x 6 | 288,00 | 84 x 0,31 | 20,3 | 672 |
| 5 x 10 | 480,00 | 80 x 0,41 | 24,2 | 1.001 |
| 5 x 16 | 768,00 | 128 x 0,41 | 28,4 | 1.445 |
| 5 x 25 | 1.200,00 | 200 x 0,41 | 34,1 | 2.140 |
| 5 x 35 | 1.680,00 | 280 x 0,41 | 37,4 | 2.791 |
| 7 x 1,5 | 100,80 | 30 x 0,26 | 16,1 | 370 |
| 7 x 2,5 | 168,00 | 50 x 0,26 | 18,3 | 504 |
| 10 x 1,5 | 144,00 | 30 x 0,26 | 19,0 | 490 |
| 12 x 2,5 | 288,00 | 50 x 0,26 | 22,3 | 733 |
| 18 x 2,5 | 432,00 | 50 x 0,26 | 26,4 | 1.055 |
