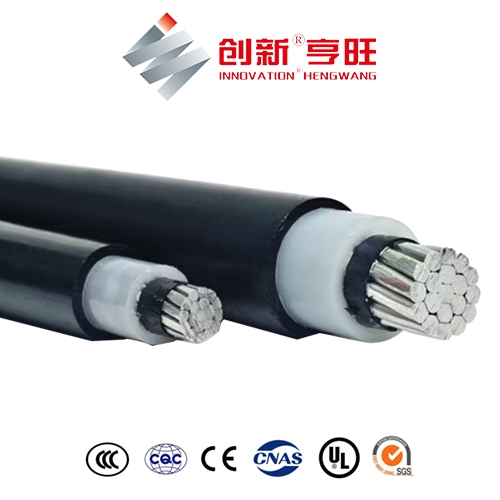

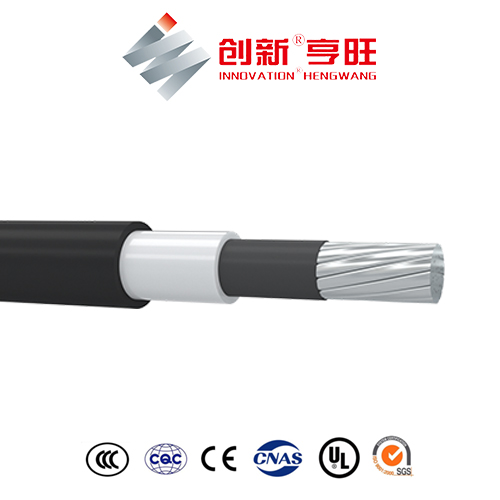

SAC Spaced Aerial Cable
Minimum Order Quantity: 2KM;
Payment Type: T/T, L/C, MoneyGram, Credit Card, Western Union, Cash;
Shipping: Shipping fee and delivery date to be negotiated. Chat with supplier now for more details;
Secure Payments: Every payment you make is secured with strict SSL encryption and PCI DSS data protection protocols;
Delivery Terms: FOB, CFR, EXW, FAS, DDP；
Payment Currency: USD, EUR, CAD, AUD, GBP, CNY
Share:
Product Description
SAC Spaced Aerial Cable ICEA S-66-524
Spaced Aerial Cable Application
This kind of spaced aerial cable ( SAC cable) is used for aerial power transmission at 15/25/35 maximum system voltage. the phase to phase voltage is 10/20/33KV. This standard applies of supported spacer cable. These conductors are intended primarily for the distribution of electrical energy under normal conditions of overhead (aerial) installations. They are considered as covered conductors therefore the cables carry no voltage rating. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer.

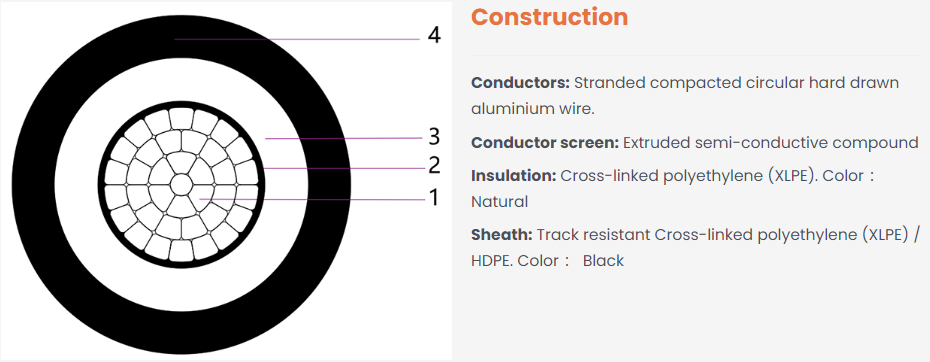

Spaced Aerial Cable Construction
Conductor screen: Extruded semi-conductive compound
Insulation: Cross-linked polyethylene (XLPE). Color ： Natural
Sheath: Track resistant Cross-linked polyethylene (XLPE) / HDPE. Color ： Black
SAC Spaced Aerial Cable Characteristics
- Voltage Rating: 15kV. 25KV. 35KV
- Operating Temperature: -40°C to +90°C .
- Minimum Laying/ Installation Temperature: -20°C .
- Max operating temperature of conductor. When cable short-circuited(5s maximum duration): 250℃
- Test Voltage: AC. 27kV 5min No Breakdown(For 15KV SAC Cable).
AC. 38kV 5min No Breakdown(For 25KV SAC Cable).
AC. 49kV 5min No Breakdown(For 35KV SAC Cable). - Minimum Bending Radius: 15 x OD (Overall Diameter)
SAC Spaced Aerial Cable Specifications
| Nominal Size | Min.No. of Wires |
Covering Thickness | Cable Diameter | Min. Breaking Load | Weight | |||
| Conductor Shield | Inner Layer | Outer Layer | ||||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km | |
| 3-Layer 15kV AAC/XLPE/XLPE | ||||||||
| 25 | 6 | 0.60 | 1.91 | 1.91 | 15.2 | 3762 | 218 | |
| 35 | 6 | 0.60 | 1.91 | 1.91 | 16.2 | 5177 | 258 | |
| 50 | 6 | 0.60 | 1.91 | 1.91 | 17.3 | 7011 | 307 | |
| 70 | 12 | 0.60 | 1.91 | 1.91 | 19.0 | 10354 | 387 | |
| 95 | 15 | 0.60 | 1.91 | 1.91 | 20.8 | 13727 | 482 | |
| 120 | 15 | 0.60 | 1.91 | 1.91 | 22.0 | 17339 | 564 | |
| 150 | 15 | 0.60 | 1.91 | 1.91 | 23.7 | 21033 | 660 | |
| 185 | 30 | 0.60 | 1.91 | 1.91 | 25.3 | 26732 | 780 | |
| 240 | 30 | 0.60 | 1.91 | 1.91 | 27.6 | 34679 | 968 | |
25kV SAC Cable
| Nominal Size | Min. No. of Wires |
Covering Thickness | Cable Diameter | Min. Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km |
| 3-Layer 25kV AAC/XLPE/XLPE | |||||||
| 25 | 6 | 0.70 | 3.18 | 3.18 | 20.1 | 3762 | 351 |
| 35 | 6 | 0.70 | 3.18 | 3.18 | 21.1 | 5177 | 398 |
| 50 | 6 | 0.70 | 3.18 | 3.18 | 22.2 | 7011 | 455 |
| 70 | 12 | 0.70 | 3.18 | 3.18 | 23.9 | 10354 | 548 |
| 95 | 15 | 0.70 | 3.18 | 3.18 | 25.7 | 13727 | 657 |
| 120 | 15 | 0.70 | 3.18 | 3.18 | 26.9 | 17339 | 748 |
| 150 | 15 | 0.70 | 3.18 | 3.18 | 28.6 | 21033 | 856 |
| 185 | 30 | 0.70 | 3.18 | 3.18 | 30.2 | 26732 | 989 |
| 240 | 30 | 0.70 | 3.18 | 3.18 | 32.5 | 34679 | 1195 |
35kV SAC Cable
| Nominal Size | Min. No. of Wires |
Covering Thickness | Cable Diameter | Min. Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km |
| 3-Layer 35kV AAC/XLPE/XLPE | |||||||
| 25 | 6 | 0.70 | 4.45 | 3.18 | 22.6 | 3762 | 433 |
| 35 | 6 | 0.70 | 4.45 | 3.18 | 23.6 | 5177 | 485 |
| 50 | 6 | 0.70 | 4.45 | 3.18 | 24.7 | 7011 | 545 |
| 70 | 12 | 0.70 | 4.45 | 3.18 | 26.4 | 10354 | 645 |
| 95 | 15 | 0.70 | 4.45 | 3.18 | 28.2 | 13727 | 761 |
| 120 | 15 | 0.70 | 4.45 | 3.18 | 29.4 | 17339 | 856 |
| 150 | 15 | 0.70 | 4.45 | 3.18 | 31.1 | 21033 | 971 |
| 185 | 30 | 0.70 | 4.45 | 3.18 | 32.7 | 26732 | 1110 |
| 240 | 30 | 0.70 | 4.45 | 3.18 | 35.0 | 34679 | 1324 |
15kV SAC Cable
| Nominal Size | Min. No. of Wires |
Covering Thickness | Cable Diameter | Min. Breaking Load | Weight | |||
| Conductor Shield | Inner Layer | Outer Layer | ||||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km | |
| 3-Layer 15kV AAC/XLPE/HDPE | ||||||||
| 25 | 6 | 0.60 | 1.91 | 1.91 | 15.2 | 3762 | 221 | |
| 35 | 6 | 0.60 | 1.91 | 1.91 | 16.2 | 5177 | 261 | |
| 50 | 6 | 0.60 | 1.91 | 1.91 | 17.3 | 7011 | 310 | |
| 70 | 12 | 0.60 | 1.91 | 1.91 | 19.0 | 10354 | 390 | |
| 95 | 15 | 0.60 | 1.91 | 1.91 | 20.8 | 13727 | 486 | |
| 120 | 15 | 0.60 | 1.91 | 1.91 | 22.0 | 17339 | 568 | |
| 150 | 15 | 0.60 | 1.91 | 1.91 | 23.7 | 21033 | 664 | |
| 185 | 30 | 0.60 | 1.91 | 1.91 | 25.3 | 26732 | 785 | |
| 240 | 30 | 0.60 | 1.91 | 1.91 | 27.6 | 34679 | 973 | |
25kV SAC Cable
| Nominal Size | Min. No. of Wires |
Covering Thickness | Cable Diameter | Min. Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km |
| 3-Layer 25kV AAC/XLPE/HDPE | |||||||
| 25 | 6 | 0.70 | 3.18 | 3.18 | 20.1 | 3762 | 356 |
| 35 | 6 | 0.70 | 3.18 | 3.18 | 21.1 | 5177 | 404 |
| 50 | 6 | 0.70 | 3.18 | 3.18 | 22.2 | 7011 | 461 |
| 70 | 12 | 0.70 | 3.18 | 3.18 | 23.9 | 10354 | 555 |
| 95 | 15 | 0.70 | 3.18 | 3.18 | 25.7 | 13727 | 664 |
| 120 | 15 | 0.70 | 3.18 | 3.18 | 26.9 | 17339 | 755 |
| 150 | 15 | 0.70 | 3.18 | 3.18 | 28.6 | 21033 | 864 |
| 185 | 30 | 0.70 | 3.18 | 3.18 | 30.2 | 26732 | 997 |
| 240 | 30 | 0.70 | 3.18 | 3.18 | 32.5 | 34679 | 1203 |
35kV SAC Cable
| Nominal Size | Min. No. of Wires |
Covering Thickness | Cable Diameter | Min. Breaking Load | Weight | ||
| Conductor Shield | Inner Layer | Outer Layer | |||||
| mm2 | No. | mm | mm | mm | mm | N | kg/km |
| 3-Layer 35kV AAC/XLPE/HDPE | |||||||
| 25 | 6 | 0.70 | 4.45 | 3.18 | 22.6 | 3762 | 439 |
| 35 | 6 | 0.70 | 4.45 | 3.18 | 23.6 | 5177 | 491 |
| 50 | 6 | 0.70 | 4.45 | 3.18 | 24.7 | 7011 | 552 |
| 70 | 12 | 0.70 | 4.45 | 3.18 | 26.4 | 10354 | 652 |
| 95 | 15 | 0.70 | 4.45 | 3.18 | 28.2 | 13727 | 768 |
| 120 | 15 | 0.70 | 4.45 | 3.18 | 29.4 | 17339 | 864 |
| 150 | 15 | 0.70 | 4.45 | 3.18 | 31.1 | 21033 | 980 |
| 185 | 30 | 0.70 | 4.45 | 3.18 | 32.7 | 26732 | 1119 |
| 240 | 30 | 0.70 | 4.45 | 3.18 | 35.0 | 34679 | 1334 |
