Tree Wire Spacer Cable

ASTM Covered Aerial Medium Voltage Covered Conductor (Spacer Cable Or Tree Wire)

Spacer Cable Or Tree Wire Application

Covered Aerial MV Cable – Installed with other Covered Aerial MV cables and a supporting messenger through a series of space- maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation, particularly useful in congested areas.
Tree Wire – Used for spans where trees crowd the right-of-way, such as in wooded residential areas, when a minimum of interference with the environment is desired. Covering minimizes power outages due to conductor contact with tree limbs, reducing the need for frequent or severe trimming.
Spacer Cable – Installed with other spacer cables and a supporting messenger through a series of space-maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas.

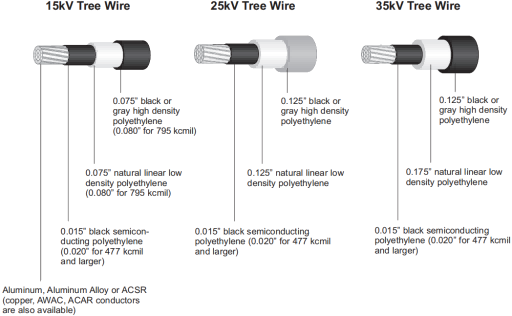

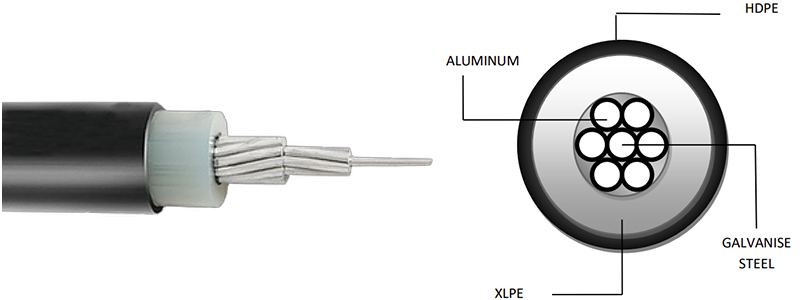

Spacer Cable Or Tree Wire Construction

AAC, AAAC, ACSR Hard drawn Aluminum conductors & high die electric strength; Galvanise steel wire zinc coated & high impact/ abrasion resistant
concentrically stranded insulated with Cross-linked polyethylene (XLPE)
Jacketed with weather, track & sunlight resistant High density polyethylene (HDPE)

Spacer Cable Or Tree Wire Sandards

●American Standard One Two Three Layer MV 5kv 15KV25KV 35KV Overhead Covered Conductor.
●ASTM B230 Standard Specification for Aluminum1350-H19 Wire for Electrical Purposes
ASTM B231 Standard Specification for Concentric-Lay-Stranded Aluminum1350Conductors
●ASTM B232 Standard Specification for Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced(ACSR)
●ASTM B398 Standard Specification for Aluminum-Alloy 6201-T81 and 6201-T83 Wire for Electrical Purposes
●ASTM B399 Standard Specification for Concentric-Lay-Stranded Aluminum-Alloy 6201-T81Conductors
●ASTM B400 Standard Specification for CompactRound Concentric-Lay-Stranded Conductors
●ASTM D2656 Standard Specification for Cross-linked Polyethylene Insulation for Wire and Cable Rated 2001 to 35 000 V
●ASTM D1248 Standard Specification for Polyethylene Plastics Extrusion Materials for Wire and Cable
●ICEAS-70-547Standard Specification for Weather Resistant Polyethylene Covered Conductors
●The conductor shield shall be an extruded back semiconductor polymer meeting the physical requirements of ICEA S-61-402.
●Available with track-resistant high-density polyethylene(TR-HDPE)per ASTM D1248 or Track-Resistant Cross-linked Polyethylene(TK XLPE) covering per ASTM D2656 and ICEA S-
66-524
